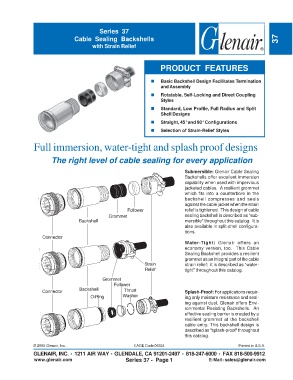

Series 37
Cable Sealing Backshells 37
with Strain Relief

PRODUCT FEATURES

„ „ „ „ „ Basic Backshell Design Facilitates Termination
and Assembly
„ „ „ „ „ Rotatable, Self-Locking and Direct Coupling
Styles
„ „ „ „ „ Standard, Low Profile, Full Radius and Split
Shell Designs
„ „ „ „ „ Straight, 45° and 90° Configurations
„ „ „ „ „ Selection of Strain-Relief Styles

Full immersion, water-tight and splash proof designs

The right level of cable sealing for every application

Submersible: Glenair Cable Sealing
Backshells offer excellent immersion
capability when used with impervious
jacketed cables. A resilient grommet
which fits into a counterbore in the
backshell compresses and seals
against the cable jacket when the strain
Follower relief is tightened. This design of cable
Grommet sealing backshell is described as "sub-
Backshell mersible" throughout this catalog. It is
also available in split-shell configura-
tions.
Connector
Water-Tight: Glenair offers an
economy version, too. This Cable
Sealing Backshell provides a resilient
grommet as an integral part of the cable
Strain strain relief; it is described as "water-
Relief tight" throughout this catalog.
Grommet
Follower
Backshell Thrust
Connector Splash-Proof: For applications requir-
O-Ring Washer ing only moisture resistance and seal-
ing against dust, Glenair offers Envi-
ronmental Resisting Backshells. An
effective sealing barrier is created by a
resilient grommet at the backshell
cable entry. This backshell design is
described as "splash-proof" throughout
this catalog.
