Page 106 - Circular Connector Backshells and Accessories

360-017

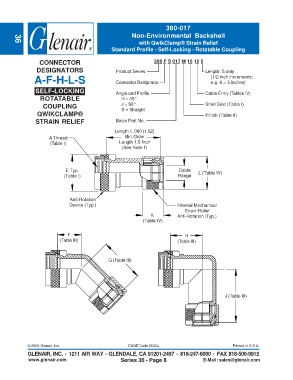

Non-Environmental Backshell
with QwikClamp® Strain Relief
36
Standard Profile - Self-Locking - Rotatable Coupling

CONNECTOR 360 F S 017 M 16 10 6
DESIGNATORS Product Series Length: S only
A-F-H-L-S Connector Designator (1/2 inch increments:
e.g. 6 = 3 inches)
SELF-LOCKING Angle and Profile Cable Entry (Tables IV)
ROTATABLE H = 45°
COUPLING J = 90° Shell Size (Table I)
S = Straight
QWIKCLAMP® Finish (Table II)
STRAIN RELIEF Basic Part No.

Length ± .060 (1.52)
A Thread Min. Order
(Table I) Length 1.5 Inch
(See Note 1)

E Typ. Cable L (Table IV)
(Table I) Range

Anti-Rotation
Device (Typ.) Internal Mechanical
Strain-Relief
K Anti-Rotation (Typ.)
(Table IV)

F H
(Table III) (Table III)

G (Table III)

J (Table III)
