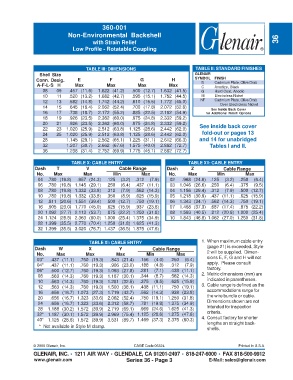

Page 101 - Circular Connector Backshells and Accessories

360-001
Non-Environmental Backshell
with Strain Relief 36
Low Profile - Rotatable Coupling

TABLE III: DIMENSIONS TABLE II: STANDARD FINISHES
Shell Size GLENAIR
Conn. Desig. E F G H SYMBOL FINISH
A-F-L-S H Max Max Max Max B Cadmium Plate, Olive Drab
Anodize, Black
C
08 09 .457 (11.6) 1.622 (41.2) .500 (12.7) 1.632 (41.5) G Hard Coat, Anodic
10 11 .520 (13.2) 1.682 (42.7) .595 (15.1) 1.752 (44.5) M Electroless Nickel
12 13 .582 (14.8) 1.742 (44.2) .610 (15.5) 1.772 (45.0) NF Cadmium Plate, Olive Drab
Over Electroless Nickel
14 15 .645 (16.4) 2.062 (52.4) .700 (17.8) 2.072 (52.6) See Inside Back Cover
16 17 .738 (18.7) 2.172 (55.2) .885 (22.5) 2.162 (54.9) for Additional Finish Options
18 19 .926 (23.5) 2.362 (60.0) .975 (24.8) 2.332 (59.2)
20 21 .926 (23.5) 2.362 (60.0) .975 (24.8) 2.332 (59.2)
22 23 1.020 (25.9) 2.512 (63.8) 1.125 (28.6) 2.442 (62.0) See inside back cover
24 25 1.020 (25.9) 2.512 (63.8) 1.125 (28.6) 2.442 (62.0) fold-out or pages 13
28 1.145 (29.1) 2.562 (65.1) 1.225 (31.1) 2.612 (66.3) and 14 for unabridged
32 1.207 (30.7) 2.662 (67.6) 1.575 (40.0) 2.862 (72.7) Tables I and II.
36 1.238 (31.4) 2.752 (69.9) 1.775 (45.1) 2.862 (72.7)

TABLE X: CABLE ENTRY TABLE XII: CABLE ENTRY
Dash T V Cable Range Dash Z Cable Range
No. Max Max Min Max No. Max Min Max
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) 02 .968 (24.6) .125 (3.2) .250 (6.4)
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) 03 1.046 (26.6) .250 (6.4) .375 (9.5)
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) 04 1.156 (29.4) .312 (7.9) .500 (12.7)
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) 05 1.218 (30.9) .437 (11.1) .625 (15.9)
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) 06 1.343 (34.1) .562 (14.3) .750 (19.1)
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) 07 1.468 (37.3) .687 (17.4) .875 (22.2)
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) 08 1.593 (40.5) .812 (20.6) 1.000 (25.4)
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) 10 1.843 (46.8) 1.062 (27.0) 1.250 (31.8)
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)

TABLE XI: CABLE ENTRY 1. When maximum cable entry
Dash W X Y Cable Range (page 21) is exceeded, Style
No. Max Max Max Min Max 2 will be supplied. Dimen-
03* .437 (11.1) .760 (19.3) .843 (21.4) .156 (4.0) .250 (6.4) sions E, F, G and H will not
04* .437 (11.1) .760 (19.3) .906 (23.0) .188 (4.8) .312 (7.9) apply. Please consult
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .281 (7.1) .438 (11.1) factory.
08 .563 (14.3) .760 (19.3) 1.187 (30.1) .344 (8.7) .562 (14.3) 2. Metric dimensions (mm) are
10 .563 (14.3) .760 (19.3) 1.281 (32.5) .375 (9.5) .625 (15.9) indicated in parentheses.
12 .563 (14.3) .760 (19.3) 1.500 (38.1) .438 (11.1) .750 (19.1) 3. Cable range is defined as the
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) .562 (14.3) .938 (23.8) accommodations range for
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) .750 (19.1) 1.250 (31.8) the wire bundle or cable.
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) .781 (19.8) 1.375 (34.9) Dimensions shown are not
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) .969 (24.6) 1.625 (41.3) intended for inspection
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 1.125 (28.6) 1.875 (47.6) criteria.
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 1.469 (37.3) 2.375 (60.3) 4. Consult factory for shorter
lengths on straight back-
* Not available in Style M clamp.
shells.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 36 - Page 3 E-Mail: sales@glenair.com
