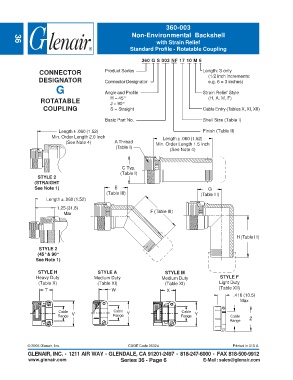

Page 104 - Circular Connector Backshells and Accessories
P. 104

360-003
                                                        Non-Environmental Backshell
                                                                  with Strain Relief
       36
                                                       Standard Profile - Rotatable Coupling

                                                            360 G S 003 NF 17 10 M 6

                 CONNECTOR                   Product Series                           Length: S only
                                                                                        (1/2 inch increments:
                 DESIGNATOR                  Connector Designator                       e.g. 6 = 3 inches)
                        G                    Angle and Profile                        Strain Relief Style

                  ROTATABLE                    H = 45°                                  (H, A, M, F)
                                               J = 90°
                   COUPLING                    S = Straight                           Cable Entry (Tables X, XI, XII)


                                             Basic Part No.                           Shell Size (Table I)

                          Length ± .060 (1.52)                                        Finish (Table II)
                       Min. Order Length 2.0 Inch                    Length ± .060 (1.52)
                            (See Note 4)         A Thread         Min. Order Length 1.5 Inch
                                                 (Table I)
                                                                        (See Note 4)


                                                    C Typ.
                                                   (Table I)
                 STYLE 2
               (STRAIGHT
               See Note 1)                       E                                      G
                                             (Table III)                             (Table III)
                    Length ± .060 (1.52)

                         1.25 (31.8)
                            Max                                 F (Table III)




                                                                                                    H (Table III)

                 STYLE 2
                 (45° & 90°
                See Note 1)

                 STYLE H                  STYLE A                     STYLE M
                Heavy Duty              Medium Duty                  Medium Duty             STYLE F
                 (Table X)                (Table XI)                  (Table XI)             Light Duty
                    T                           W                      X                    (Table XII)
                                                                                                   .416 (10.5)
                                                                                                     Max

                         Cable  V                Cable  Y                    Cable  Y
                         Range                  Range                        Range               Cable   Z
                                                                                                 Range





             © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
             GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
             www.glenair.com                       Series 36 - Page 6                 E-Mail: sales@glenair.com
