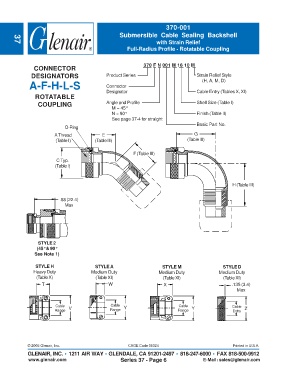

Page 114 - Circular Connector Backshells and Accessories

370-001
Submersible Cable Sealing Backshell
with Strain Relief
37
Full-Radius Profile - Rotatable Coupling

370 F N 001 M 16 10 M
CONNECTOR
DESIGNATORS Product Series Strain Relief Style
A-F-H-L-S Connector (H, A, M, D)
Designator Cable Entry (Tables X, XI)
ROTATABLE
COUPLING Angle and Profile Shell Size (Table I)
M = 45°
N = 90° Finish (Table II)
See page 37-4 for straight
Basic Part No.
O-Ring
A Thread E G
(Table I) (Table III) (Table III)

F (Table III)
C Typ.
(Table I)

H (Table III)

.88 (22.4)
Max

STYLE 2
(45° & 90°
See Note 1)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable
Range Range Range Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 37 - Page 6 E-Mail: sales@glenair.com
