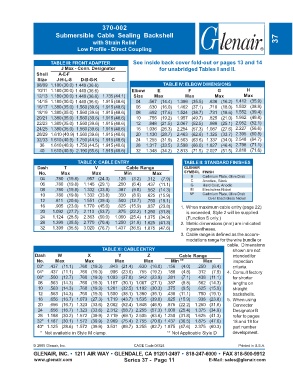

370-002
Submersible Cable Sealing Backshell
with Strain Relief 37
Low Profile - Direct Coupling

TABLE III: FRONT ADAPTER See inside back cover fold-out or pages 13 and 14
J Max - Conn. Designator for unabridged Tables I and II.
Shell A-E-F
Size J-H-L-S D-B-G-K C
08/09 1.180 (30.0) 1.440 (36.6) TABLE IV: ELBOW DIMENSIONS
10/11 1.180 (30.0) 1.440 (36.6) Elbow E F G H
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1) Size Max Max Max Max
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) 04 .567 (14.4) 1.399 (35.5) .636 (16.2) 1.412 (35.9)
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 06 .630 (16.0) 1.462 (37.1) .710 (18.0) 1.532 (38.9)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 08 .692 (17.6) 1.524 (38.7) .731 (18.6) 1.552 (39.4)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 10 .755 (19.2) 1.957 (49.7) .825 (21.0) 1.962 (49.8)
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 12 .848 (21.5) 2.067 (52.5) .988 (25.1) 2.052 (52.1)
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 16 1.036 (26.3) 2.254 (57.3) 1.087 (27.6) 2.227 (56.6)
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 20 1.130 (28.7) 2.463 (62.6) 1.325 (33.7) 2.395 (60.8)
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 24 1.255 (31.9) 2.503 (63.6) 1.337 (34.0) 2.548 (64.7)
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 28 1.317 (33.5) 2.598 (66.0) 1.827 (46.4) 2.798 (71.1)
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) 32 1.348 (34.2) 2.813 (71.5) 2.027 (51.5) 2.818 (71.6)

TABLE X: CABLE ENTRY TABLE II: STANDARD FINISHES
Dash T V Cable Range GLENAIR
No. Max Max Min Max SYMBOL FINISH
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) B Cadmium Plate, Olive Drab
C
Anodize, Black
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) G Hard Coat, Anodic
08 .780 (19.8) 1.332 (33.8) .387 (9.8) .562 (14.3) M Electroless Nickel
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) NF Cadmium Plate, Olive Drab
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) Over Electroless Nickel
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) 1. When maximum cable entry (page 22)
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) is exceeded, Style 2 will be supplied.
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) (Function S only.)
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) 2. Metric dimensions (mm) are indicated
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) in parentheses.
3. Cable range is defined as the accom-
modations range for the wire bundle or
cable. Dimensions
TABLE XI: CABLE ENTRY shown are not
Dash W X Y Z Cable Range intended for
No. Max Max Max Max Min ** Max inspection
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4) criteria.
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9) 4. Consult factory
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1) for shorter
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3) lengths on
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9) straight
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1) backshells.
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8) 5. When using
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8) Connector
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9) Designator B
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3) refer to pages
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6) 18 and 19 for
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.875 (47.6) 2.375 (60.3) part number
* Not available in Style M clamp. ** Not Applicable Style D development.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
