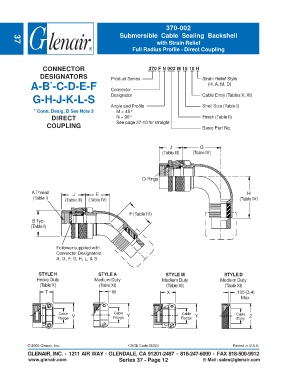

Page 120 - Circular Connector Backshells and Accessories

370-002
Submersible Cable Sealing Backshell
with Strain Relief
37
Full Radius Profile - Direct Coupling

CONNECTOR 370 F N 002 M 16 10 H
DESIGNATORS Product Series Strain Relief Style
A-B -C-D-E-F Connector (H, A, M, D)
*
G-H-J-K-L-S Designator Cable Entry (Tables X, XI)

Angle and Profile Shell Size (Table I)
* Conn. Desig. B See Note 3 M = 45°
DIRECT N = 90° Finish (Table II)
COUPLING See page 37-10 for straight Basic Part No.

J G
(Table III) (Table IV)

O-Rings

A Thread J E H
(Table I) (Table III) (Table IV) (Table IV)

F (Table IV)
B Typ.
(Table I)

Follower supplied with
Connector Designators
A, D, F, G, H, L, & S

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable
Range Range Range Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 37 - Page 12 E-Mail: sales@glenair.com
