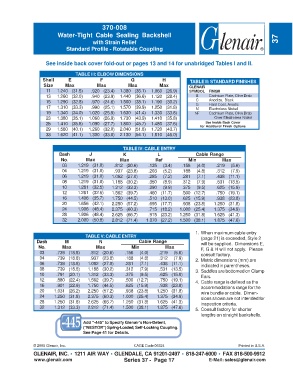

Page 125 - Circular Connector Backshells and Accessories

370-008
Water-Tight Cable Sealing Backshell
with Strain Relief 37
Standard Profile - Rotatable Coupling

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell E F G H TABLE II: STANDARD FINISHES
Size Max Max Max Max GLENAIR
11 1.240 (31.5) .920 (23.4) 1.380 (35.1) 1.060 (26.9) SYMBOL FINISH
13 1.260 (32.0) .940 (23.9) 1.440 (36.6) 1.120 (28.4) B Cadmium Plate, Olive Drab
15 1.290 (32.8) .970 (24.6) 1.500 (38.1) 1.190 (30.2) C Anodize, Black
17 1.310 (33.3) .990 (25.1) 1.570 (39.9) 1.250 (31.8) G Hard Coat, Anodic
Electroless Nickel
M
19 1.340 (34.0) 1.020 (25.9) 1.630 (41.4) 1.330 (33.8) NF Cadmium Plate, Olive Drab
23 1.380 (35.1) 1.060 (26.9) 1.730 (43.9) 1.410 (35.8) Over Electroless Nickel
See Inside Back Cover
25 1.410 (35.8) 1.090 (27.7) 1.800 (45.7) 1.480 (37.6) for Additional Finish Options
29 1.580 (40.1) 1.260 (32.0) 2.040 (51.8) 1.720 (43.7)
33 1.620 (41.1) 1.300 (33.0) 2.130 (54.1) 1.810 (46.0)

TABLE IV: CABLE ENTRY
Dash J K L Cable Range
No. Max Max Ref Min Max
03 1.219 (31.0) .812 (20.6) .135 (3.4) .156 (4.0) .219 (5.6)
04 1.219 (31.0) .937 (23.8) .203 (5.2) .188 (4.8) .312 (7.9)
06 1.219 (31.0) 1.062 (27.0) .285 (7.2) .281 (7.1) .438 (11.1)
08 1.219 (31.0) 1.188 (30.2) .350 (8.9) .312 (7.9) .531 (13.5)
10 1.281 (32.5) 1.312 (33.3) .390 (9.9) .375 (9.5) .625 (15.9)
12 1.281 (32.5) 1.562 (39.7) .460 (11.7) .500 (12.7) .750 (19.1)
16 1.406 (35.7) 1.750 (44.5) .510 (13.0) .625 (15.9) .938 (23.8)
20 1.656 (42.1) 2.250 (57.2) .695 (17.7) .938 (23.8) 1.250 (31.8)
24 1.906 (48.4) 2.375 (60.3) .715 (18.2) 1.000 (25.4) 1.375 (34.9)
28 1.906 (48.4) 2.625 (66.7) .915 (23.2) 1.250 (31.8) 1.625 (41.3)
32 2.000 (50.8) 2.812 (71.4) 1.070 (27.2) 1.500 (38.1) 1.875 (47.6)

1. When maximum cable entry
TABLE V: CABLE ENTRY (page 21) is exceeded, Style 2
Dash M N Cable Range will be supplied. Dimensions E,
No. Max Max Min Max F, G & H will not apply. Please
03 .739 (18.8) .812 (20.6) .156 (4.0) .219 (5.6) consult factory.
04 .739 (18.8) .937 (23.8) .188 (4.8) .312 (7.9) 2. Metric dimensions (mm) are
06 .739 (18.8) 1.062 (27.0) .281 (7.1) .438 (11.1) indicated in parentheses.
08 .739 (18.8) 1.188 (30.2) .312 (7.9) .531 (13.5) 3. Saddles are bottomed on Clamp
10 .791 (20.1) 1.312 (33.3) .375 (9.5) .625 (15.9) Ears.
12 .880 (22.4) 1.562 (39.7) .500 (12.7) .750 (19.1) 4. Cable range is defined as the
16 .901 (22.9) 1.750 (44.5) .625 (15.9) .938 (23.8) accommodations range for the
20 1.031 (26.2) 2.250 (57.2) .938 (23.8) 1.250 (31.8) wire bundle or cable. Dimen-
24 1.250 (31.8) 2.375 (60.3) 1.000 (25.4) 1.375 (34.9) sions shown are not intended for
28 1.250 (31.8) 2.625 (66.7) 1.250 (31.8) 1.625 (41.3) inspection criteria.
32 1.312 (33.3) 2.812 (71.4) 1.500 (38.1) 1.875 (47.6) 5. Consult factory for shorter
lengths on straight backshells.
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 37 - Page 17 E-Mail: sales@glenair.com
