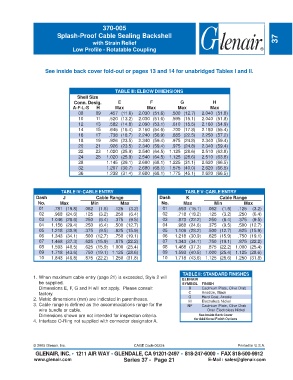

370-005
                         Splash-Proof Cable Sealing Backshell
                                        with Strain Relief                                                           37
                               Low Profile - Rotatable Coupling




                    See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.



                                                 TABLE III: ELBOW DIMENSIONS
                                 Shell Size
                                Conn. Desig.      E             F           G             H
                               A-F-L-S   H       Max          Max          Max           Max
                                  08     09    .457 (11.6)  2.030 (51.6)  .500 (12.7)  2.040 (51.8)
                                  10     11    .520 (13.2)  2.030 (51.6)  .595 (15.1)  2.040 (51.8)
                                  12     13    .582 (14.8)  2.090 (53.1)  .610 (15.5)  2.160 (54.9)
                                  14     15    .645 (16.4)  2.150 (54.6)  .700 (17.8)  2.180 (55.4)
                                  16     17    .738 (18.7)  2.240 (56.9)  .885 (22.5)  2.250 (57.2)
                                  18     19    .926 (23.5)  2.340 (59.4)  .975 (24.8)  2.340 (59.4)
                                  20     21    .926 (23.5)  2.340 (59.4)  .975 (24.8)  2.340 (59.4)
                                  22     23   1.020 (25.9)  2.540 (64.5)  1.125 (28.6)  2.510 (63.8)
                                  24     25   1.020 (25.9)  2.540 (64.5)  1.125 (28.6)  2.510 (63.8)
                                  28          1.145 (29.1)  2.680 (68.1)  1.225 (31.1)  2.620 (66.5)
                                  32          1.207 (30.7)  2.680 (68.1)  1.575 (40.0)  2.620 (66.5)
                                  36          1.238 (31.4)  2.680 (68.1)  1.775 (45.1)  2.620 (66.5)



                           TABLE IV: CABLE ENTRY                              TABLE V: CABLE ENTRY
                Dash       J             Cable Range                Dash       K             Cable Range
                 No.      Max          Min         Max              No.       Max          Min         Max
                 01     .781 (19.8)  .062  (1.6)  .125  (3.2)        01    .593 (15.1)  .062  (1.6)  .125  (3.2)
                 02     .968 (24.6)  .125  (3.2)  .250  (6.4)        02    .718 (18.2)  .125  (3.2)  .250  (6.4)
                 03   1.046 (26.6)  .250  (6.4)  .375  (9.5)         03    .873 (22.2)  .250  (6.4)  .375  (9.5)
                 04   1.156 (29.4)  .250  (6.4)  .500 (12.7)         04    .968 (24.6)  .375  (9.5)  .500 (12.7)
                 05   1.218 (30.9)  .375  (9.5)  .625 (15.9)         05   1.109 (28.2)  .500 (12.7)  .625 (15.9)
                 06   1.343 (34.1)  .500 (12.7)  .750 (19.1)         06   1.218 (30.9)  .625 (15.9)  .750 (19.1)
                 07   1.468 (37.3)  .625 (15.9)  .875 (22.2)         07   1.343 (34.1)  .750 (19.1)  .875 (22.2)
                 08   1.593 (40.5)  .625 (15.9)  1.000 (25.4)        08   1.468 (37.3)  .875 (22.2)  1.000 (25.4)
                 09   1.718 (43.6)  .750 (19.1)  1.125 (28.6)        09   1.593 (40.5) 1.000 (25.4)  1.125 (28.6)
                 10   1.843 (46.8)  .875 (22.2)  1.250 (31.8)        10   1.718 (43.6) 1.125 (28.6)  1.250 (31.8)



                                                                             TABLE II: STANDARD FINISHES
               1. When maximum cable entry (page 21) is exceeded, Style 2 will  GLENAIR
                 be supplied.                                                SYMBOL  FINISH
                 Dimensions E, F, G and H will not apply.  Please consult       B    Cadmium Plate, Olive Drab
                 factory.                                                       C    Anodize, Black
               2. Metric dimensions (mm) are indicated in parentheses.          G    Hard Coat, Anodic
                                                                                     Electroless Nickel
                                                                                M
               3. Cable range is defined as the accommodations range for the   NF    Cadmium Plate, Olive Drab
                 wire bundle or cable.                                                  Over Electroless Nickel
                 Dimensions shown are not intended for inspection criteria.         See Inside Back Cover
               4. Interface O-Ring not supplied with connector designator A.      for Additional Finish Options





               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 37 -  Page 21               E-Mail: sales@glenair.com
