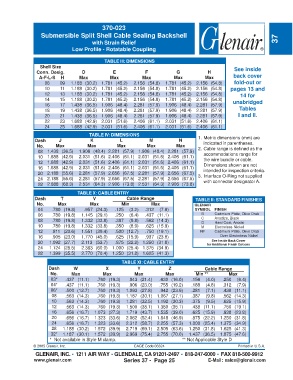

Page 133 - Circular Connector Backshells and Accessories

370-023
Submersible Split Shell Cable Sealing Backshell
with Strain Relief 37
Low Profile - Rotatable Coupling

TABLE III: DIMENSIONS
Shell Size See inside
Conn. Desig. D E F G H
A-F-L-S H Max Max Max Max Max back cover
08 09 1.188 (30.2) 1.781 (45.2) 2.156 (54.8) 1.781 (45.2) 2.156 (54.8) fold-out or
10 11 1.188 (30.2) 1.781 (45.2) 2.156 (54.8) 1.781 (45.2) 2.156 (54.8) pages 13 and
12 13 1.188 (30.2) 1.781 (45.2) 2.156 (54.8) 1.781 (45.2) 2.156 (54.8) 14 for
14 15 1.188 (30.2) 1.781 (45.2) 2.156 (54.8) 1.781 (45.2) 2.156 (54.8)
16 17 1.438 (36.5) 1.906 (48.4) 2.281 (57.9) 1.906 (48.4) 2.281 (57.9) unabridged
18 19 1.438 (36.5) 1.906 (48.4) 2.281 (57.9) 1.906 (48.4) 2.281 (57.9) Tables
20 21 1.438 (36.5) 1.906 (48.4) 2.281 (57.9) 1.906 (48.4) 2.281 (57.9) I and II.
22 23 1.688 (42.9) 2.031 (51.6) 2.406 (61.1) 2.031 (51.6) 2.406 (61.1)
24 25 1.688 (42.9) 2.031 (51.6) 2.406 (61.1) 2.031 (51.6) 2.406 (61.1)
TABLE IV: DIMENSIONS
Dash J K L M N 1. Metric dimensions (mm) are
indicated in parentheses.
No. Max Max Max Max Max 2. Cable range is defined as the
08 1.438 (36.5) 1.906 (48.4) 2.281 (57.9) 1.906 (48.4) 2.281 (57.9)
10 1.688 (42.9) 2.031 (51.6) 2.406 (61.1) 2.031 (51.6) 2.406 (61.1) accommodations range for
the wire bundle or cable.
12 1.688 (42.9) 2.031 (51.6) 2.406 (61.1) 2.031 (51.6) 2.406 (61.1)
16 1.688 (42.9) 2.031 (51.6) 2.406 (61.1) 2.031 (51.6) 2.406 (61.1) Dimensions shown are not
intended for inspection criteria.
20 2.188 (55.6) 2.281 (57.9) 2.656 (67.5) 2.281 (57.9) 2.656 (67.5) 3. Interface O-Ring not supplied
24 2.188 (55.6) 2.281 (57.9) 2.656 (67.5) 2.281 (57.9) 2.656 (67.5)
28 2.688 (68.3) 2.531 (64.3) 2.906 (73.8) 2.531 (64.3) 2.906 (73.8) with connector designator A.

TABLE X: CABLE ENTRY
Dash T V Cable Range TABLE II: STANDARD FINISHES
No. Max Max Min Max GLENAIR
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) SYMBOL FINISH
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) B Cadmium Plate, Olive Drab
08 .780 (19.8) 1.332 (33.8) .387 (9.8) .562 (14.3) C Anodize, Black
G
Hard Coat, Anodic
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) M Electroless Nickel
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) NF Cadmium Plate, Olive Drab
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) Over Electroless Nickel
See Inside Back Cover
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) for Additional Finish Options
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
* Not available in Style M clamp. ** Not Applicable Style D
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 37 - Page 25 E-Mail: sales@glenair.com
