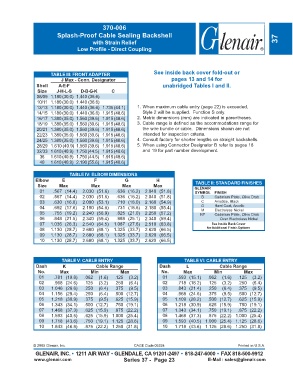

P. 131

370-006
                         Splash-Proof Cable Sealing Backshell
                                        with Strain Relief                                                           37
                                 Low Profile - Direct Coupling





                      TABLE III: FRONT ADAPTER                   See inside back cover fold-out or
                           J Max - Conn. Designator                      pages 13 and 14 for
                Shell    A-E-F                                       unabridged Tables I and II.
                 Size    J-H-L-S   D-B-G-K      C
                08/09 1.180 (30.0) 1.440 (36.6)
                10/11 1.180 (30.0) 1.440 (36.6)
                12/13 1.180 (30.0) 1.440 (36.6)  1.735 (44.1)  1. When maximum cable entry (page 22) is exceeded,
                14/15 1.180 (30.0) 1.440 (36.6)  1.915 (48.6)  Style 2 will be supplied.  Function S only.
                16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)  2. Metric dimensions (mm) are indicated in parentheses.
                18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)  3. Cable range is defined as the accommodations range for
                20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)  the wire bundle or cable.  Dimensions shown are not
                22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)  intended for inspection criteria.
                24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)  4. Consult factory for shorter lengths on straight backshells.
                28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6)  5. When using Connector Designator B refer to pages 18
                32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)  and 19 for part number development.
                  36  1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
                  40  1.610 (40.9) 2.190 (55.6) 1.915 (48.6)

                              TABLE IV: ELBOW DIMENSIONS
                Elbow      E            F            G            H
                                                                                   TABLE II: STANDARD FINISHES
                 Size     Max          Max          Max          Max              GLENAIR
                  01   .567 (14.4)  2.030 (51.6)  .636 (16.2)  2.040 (51.8)       SYMBOL   FINISH
                  02   .567 (14.4)  2.030 (51.6)  .636 (16.2)  2.040 (51.8)          B     Cadmium Plate, Olive Drab
                  03   .630 (16.0)  2.090 (53.1)  .710 (18.0)  2.160 (54.9)          C     Anodize, Black
                  04   .692 (17.6)  2.150 (54.6)  .731 (18.6)  2.180 (55.4)          G     Hard Coat, Anodic
                                                                                     M
                  05   .755 (19.2)  2.240 (56.9)  .825 (21.0)  2.250 (57.2)          NF    Electroless Nickel
                                                                                           Cadmium Plate, Olive Drab
                  06   .848 (21.5)  2.340 (59.4)  .988 (25.1)  2.340 (59.4)                  Over Electroless Nickel
                  07  1.036 (26.3)  2.540 (64.5)  1.087 (27.6)  2.510 (63.8)             See Inside Back Cover
                  08  1.130 (28.7)  2.680 (68.1)  1.325 (33.7)  2.620 (66.5)            for Additional Finish Options
                  09  1.130 (28.7)  2.680 (68.1)  1.325 (33.7)  2.620 (66.5)
                  10  1.130 (28.7)  2.680 (68.1)  1.325 (33.7)  2.620 (66.5)



                           TABLE V: CABLE ENTRY                               TABLE VI: CABLE ENTRY
                Dash       K             Cable Range                Dash       L             Cable Range
                 No.      Max          Min         Max              No.       Max          Min         Max
                 01     .781 (19.8)  .062  (1.6)  .125  (3.2)        01    .593 (15.1)  .062  (1.6)  .125  (3.2)
                 02     .968 (24.6)  .125  (3.2)  .250  (6.4)        02    .718 (18.2)  .125  (3.2)  .250  (6.4)
                 03   1.046 (26.6)  .250  (6.4)  .375  (9.5)         03    .843 (21.4)  .250  (6.4)  .375  (9.5)
                 04   1.156 (29.4)  .250  (6.4)  .500 (12.7)         04    .968 (24.6)  .375  (9.5)  .500 (12.7)
                 05   1.218 (30.9)  .375  (9.5)  .625 (15.9)         05   1.109 (28.2)  .500 (12.7)  .625 (15.9)
                 06   1.343 (34.1)  .500 (12.7)  .750 (19.1)         06   1.218 (30.9)  .625 (15.9)  .750 (19.1)
                 07   1.468 (37.3)  .625 (15.9)  .875 (22.2)         07   1.343 (34.1)  .750 (19.1)  .875 (22.2)
                 08   1.593 (40.5)  .625 (15.9)  1.000 (25.4)        08   1.468 (37.3)  .875 (22.2)  1.000 (25.4)
                 09   1.718 (43.6)  .750 (19.1)  1.125 (28.6)        09   1.593 (40.5) 1.000 (25.4)  1.125 (28.6)
                 10   1.843 (46.8)  .875 (22.2)  1.250 (31.8)        10   1.718 (43.6) 1.125 (28.6)  1.250 (31.8)



               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 37 -  Page 23               E-Mail: sales@glenair.com
