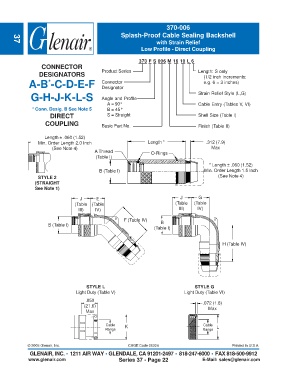

Page 130 - Circular Connector Backshells and Accessories

370-006
Splash-Proof Cable Sealing Backshell
with Strain Relief
37
Low Profile - Direct Coupling

370 F S 006 M 16 10 L 6
CONNECTOR
DESIGNATORS Product Series Length: S only
(1/2 inch increments:
A-B -C-D-E-F Connector e.g. 6 = 3 inches)
*
Designator
G-H-J-K-L-S Angle and Profile Strain Relief Style (L,G)
A = 90° Cable Entry (Tables V, VI)
* Conn. Desig. B See Note 5 B = 45°
DIRECT S = Straight Shell Size (Table I)
COUPLING Basic Part No. Finish (Table II)

Length ± .060 (1.52)
Min. Order Length 2.0 Inch Length * .312 (7.9)
(See Note 4) Max
A Thread O-Rings
(Table I)
* Length ± .060 (1.52)
B (Table I) Min. Order Length 1.5 Inch
STYLE 2 (See Note 4)
(STRAIGHT
See Note 1)

J E J G
(Table (Table (Table (Table
III) IV) III) IV)

F (Table IV)
B (Table I) B
(Table I)

H (Table IV)

STYLE L STYLE G
Light Duty (Table V) Light Duty (Table VI)
.850 .072 (1.8)
(21.6)
Max Max

Cable K Cable L
Range Range

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 37 - Page 22 E-Mail: sales@glenair.com
