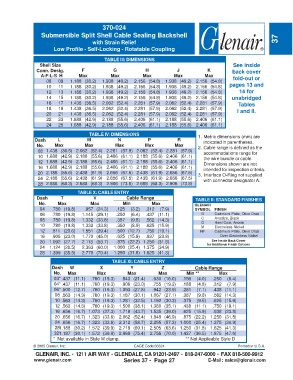

Page 135 - Circular Connector Backshells and Accessories

370-024
Submersible Split Shell Cable Sealing Backshell
with Strain Relief 37
Low Profile - Self-Locking - Rotatable Coupling

TABLE III: DIMENSIONS
Shell Size See inside
Conn. Desig. F G H J K back cover
A-F-L-S H Max Max Max Max Max fold-out or
08 09 1.188 (30.2) 1.938 (49.2) 2.156 (54.8) 1.938 (49.2) 2.156 (54.8)
10 11 1.188 (30.2) 1.938 (49.2) 2.156 (54.8) 1.938 (49.2) 2.156 (54.8) pages 13 and
12 13 1.188 (30.2) 1.938 (49.2) 2.156 (54.8) 1.938 (49.2) 2.156 (54.8) 14 for
14 15 1.188 (30.2) 1.938 (49.2) 2.156 (54.8) 1.938 (49.2) 2.156 (54.8) unabridged
16 17 1.438 (36.5) 2.062 (52.4) 2.281 (57.9) 2.062 (52.4) 2.281 (57.9) Tables
18 19 1.438 (36.5) 2.062 (52.4) 2.281 (57.9) 2.062 (52.4) 2.281 (57.9) I and II.
20 21 1.438 (36.5) 2.062 (52.4) 2.281 (57.9) 2.062 (52.4) 2.281 (57.9)
22 23 1.688 (42.9) 2.188 (55.6) 2.406 (61.1) 2.188 (55.6) 2.406 (61.1)
24 25 1.688 (42.9) 2.188 (55.6) 2.406 (61.1) 2.188 (55.6) 2.406 (61.1)
TABLE IV: DIMENSIONS 1. Metric dimensions (mm) are
Dash L M N P R indicated in parentheses.
No. Max Max Max Max Max 2. Cable range is defined as the
08 1.438 (36.5) 2.062 (52.4) 2.281 (57.9) 2.062 (52.4) 2.281 (57.9) accommodations range for
10 1.688 (42.9) 2.188 (55.6) 2.406 (61.1) 2.188 (55.6) 2.406 (61.1) the wire bundle or cable.
12 1.688 (42.9) 2.188 (55.6) 2.406 (61.1) 2.188 (55.6) 2.406 (61.1) Dimensions shown are not
16 1.688 (42.9) 2.188 (55.6) 2.406 (61.1) 2.188 (55.6) 2.406 (61.1) intended for inspection criteria.
20 2.188 (55.6) 2.438 (61.9) 2.656 (67.5) 2.438 (61.9) 2.656 (67.5) 3. Interface O-Ring not supplied
24 2.188 (55.6) 2.438 (61.9) 2.656 (67.5) 2.438 (61.9) 2.656 (67.5) with connector designator A.
28 2.688 (68.3) 2.688 (68.3) 2.906 (73.8) 2.688 (68.3) 2.906 (73.8)

TABLE X: CABLE ENTRY
Dash T V Cable Range TABLE II: STANDARD FINISHES
No. Max Max Min Max GLENAIR
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) SYMBOL FINISH
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) B Cadmium Plate, Olive Drab
08 .780 (19.8) 1.332 (33.8) .387 (9.8) .562 (14.3) C Anodize, Black
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) G Hard Coat, Anodic
Electroless Nickel
M
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) NF Cadmium Plate, Olive Drab
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) Over Electroless Nickel
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) See Inside Back Cover
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) for Additional Finish Options
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
* Not available in Style M clamp. ** Not Applicable Style D
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
