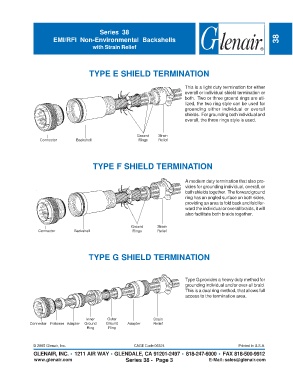

Page 139 - Circular Connector Backshells and Accessories

Series 38
EMI/RFI Non-Environmental Backshells 38
with Strain Relief

TYPE E SHIELD TERMINATION

This is a light duty termination for either
overall or individual shield termination or
both. Two or three ground rings are uti-
lized, the two ring style can be used for
grounding either individual or overall
shields. For grounding both individual and
overall, the three rings style is used.

Ground Strain
Connector Backshell Rings Relief

TYPE F SHIELD TERMINATION

A medium duty termination that also pro-
vides for grounding individual, overall, or
both shields together. The forward ground
ring has an angled surface on both sides,
providing an area to fold back and fold for-
ward the individual or overall braids, it will
also facilitate both braids together.

Ground Strain
Connector Backshell Rings Relief

TYPE G SHIELD TERMINATION

Type G provides a heavy duty method for
grounding individual and/or over-all braid.
This is a dual ring method, that allows full
access to the termination area.

Inner Outer Strain
Connector Follower Adapter Ground Ground Adapter Relief
Ring Ring

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
