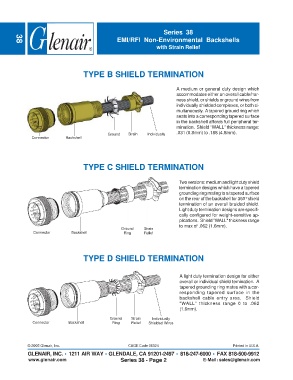

Page 138 - Circular Connector Backshells and Accessories

Series 38
EMI/RFI Non-Environmental Backshells
38
with Strain Relief

TYPE B SHIELD TERMINATION

A medium or general duty design which
accommodates either an overall cable/har-
ness shield, or shields or ground wires from
individually shielded complexes, or both si-
multaneously. A tapered ground ring which
seats into a corresponding tapered surface
in the backshell affords full peripheral ter-
mination. Shield "WALL" thickness range:
Ground Strain Individually .031 (0.8mm) to .188 (4.8mm).
Connector Backshell

TYPE C SHIELD TERMINATION

Two versions: medium and light duty shield
termination designs which have a tapered
grounding ring mating to a tapered surface
on the rear of the backshell for 360° shield
termination of an overall braided shield.
Light duty termination designs are specifi-
cally configured for weight-sensitive ap-
plications. Shield "WALL" thickness range
to max of .062 (1.6mm).
Ground Strain
Connector Backshell Ring Relief

TYPE D SHIELD TERMINATION

A light duty termination design for either
overall or individual shield temination. A
tapered grounding ring mates with a cor-
responding tapered surface in the
backshell cable entry area. Shield
"WALL" thickness range 0 to .062
(1.6mm).
Ground Strain Individually
Connector Backshell Ring Relief Shielded Wires

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 2 E-Mail: sales@glenair.com
