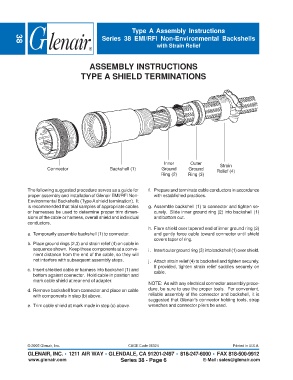

Type A Assembly  Instructions
                                            Series 38 EMI/RFI Non-Environmental Backshells
                                                                   with Strain Relief
        38


                                      ASSEMBLY INSTRUCTIONS

                                   TYPE A SHIELD TERMINATIONS





















                                                                      Inner      Outer       Strain
                     Connector                 Backshell (1)         Ground     Ground      Relief (4)
                                                                    Ring (2)    Ring (3)


             The following suggested procedure serves as a guide for  f. Prepare and terminate cable conductors in accordance
             proper assembly and installation of Glenair EMI/RFI Non-  with established practices.
             Environmental Backshells (Type A shield termination).  It
             is recommended that trial samples of appropriate cables  g. Assemble backshell (1) to connector and tighten se-
             or harnesses be used to determine proper trim dimen-  curely.  Slide inner ground ring (2) into backshell (1)
             sions of the cable or harness, overall shield and individual  and bottom out.
             conductors.
                                                               h. Flare shield over tapered end of inner ground ring (2)
             a. Temporarily assemble backshell (1) to connector.  and gently force cable toward connector until shield
                                                                 covers taper of ring.
             b. Place ground rings (2,3) and strain relief (4) on cable in
               sequence shown.  Keep these components at a conve-  i. Insert outer ground ring (3) into backshell (1) over shield.
               nient distance from the end of the cable, so they will
               not interfere with subsequent assembly steps.   j. Attach strain relief (4) to backshell and tighten securely.
                                                                 If provided, tighten strain relief saddles securely on
             c. Insert shielded cable or harness into backshell (1) and  cable.
               bottom against connector.  Hold cable in position and
               mark cable shield at rear end of adapter.
                                                               NOTE:  As with any electrical connector assembly proce-
             d. Remove backshell from connector and place on cable  dure, be sure to use the proper tools.  For convenient,
               with components in step (b) above.              reliable assembly of the connector and backshell, it is
                                                               suggested that Glenair's connector holding tools, strap
             e. Trim cable shield at mark made in step (c) above.  wrenches and connector pliers be used.
