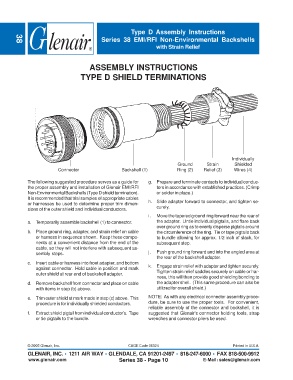

Type D  Assembly Instructions
                                           Series 38 EMI/RFI Non-Environmental Backshells
        38
                                                                  with Strain Relief


                                      ASSEMBLY INSTRUCTIONS

                                   TYPE D SHIELD TERMINATIONS




















                                                                                                  Individually
                                                                           Ground      Strain      Shielded
                         Connector                  Backshell (1)          Ring (2)   Relief (3)   Wires (4)

             The following suggested procedure serves as a guide for  g. Prepare and terminate contacts to individual conduc-
             the proper assembly and installation of Glenair EMI/RFI  tors in accordance with established practices. (Crimp
             Non-Environmental Backshells (Type D shield termination).  or solder in place.)
             It is recommended that trial samples of appropriate cables
             or harnesses be used to determine proper trim dimen-  h. Slide adapter forward to connector, and tighten se-
             sions of the outer shield and individual conductors.  curely.
                                                               i.  Move the tapered ground ring forward near the rear of
             a. Temporarily assemble backshell (1) to connector.  the adapter.  Untie individual pigtails, and flare back
                                                                  over ground ring as to evenly disperse pigtails around
             b. Place ground ring, adapter, and strain relief on cable  the circumference of the ring.  Tie or tape pigtails back
                or harness in sequence shown.  Keep these compo-  to bundle allowing for approx. 1/2 inch of slack, for
                nents at a convenient distance from the end of the  subsequent step.
                cable, so they will not interfere with subsequent as-
                sembly steps.                                  j.  Push ground ring forward and into the angled area at
                                                                  the rear of the backshell adapter.
             c. Insert cable or harness into front adapter, and bottom
                against connector.  Hold cable in position and mark  k. Engage strain relief with adapter and tighten securely.
                outer shield at rear end of backshell adapter.    Tighten strain relief saddles securely on cable or har-
                                                                  ness, this will then provide good shielding bonding to
             d. Remove backshell from connector and place on cable  the adapter shell.  (This same procedure can also be
                with items in step (b) above.                     utilized for overall shield.)

             e. Trim outer shield at mark made in step (c) above.  This  NOTE:  As with any electrical connector assembly proce-
                procedure is for individually shielded conductors.  dure, be sure to use the proper tools.  For convenient,
                                                               reliable assembly of the connector and backshell, it is
             f.  Extract shield pigtail from individual conductor’s.  Tape  suggested that Glenair’s connector holding tools, strap
                or tie pigtails to the bundle.                 wrenches and connector pliers be used.
