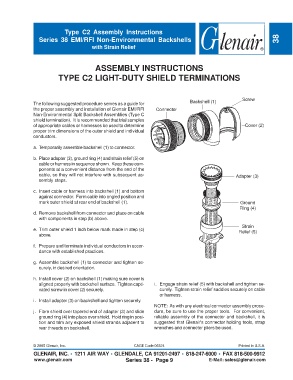

Page 145 - Circular Connector Backshells and Accessories

Type C2 Assembly Instructions
Series 38 EMI/RFI Non-Environmental Backshells 38

with Strain Relief

ASSEMBLY INSTRUCTIONS

TYPE C2 LIGHT-DUTY SHIELD TERMINATIONS

Backshell (1) Screw
The following suggested procedure serves as a guide for
the proper assembly and installation of Glenair EMI/RFI Connector
Non-Environmental Split Backshell Assemblies (Type C
shield termination). It is recommended that trial samples
of appropriate cables or harnesses be used to determine Cover (2)
proper trim dimensions of the outer shield and individual
conductors.

a. Temporarily assemble backshell (1) to connector.

b. Place adapter (3), ground ring (4) and strain relief (5) on
cable or harness in sequence shown. Keep these com-
ponents at a convenient distance from the end of the
cable, so they will not interfere with subsequent as- Adapter (3)
sembly steps.

c. Insert cable or harness into backshell (1) and bottom
against connector. Form cable into angled position and
mark outer shield at rear end of backshell (1). Ground
RIng (4)
d. Remove backshell from connector and place on cable
with components in step (b) above.
Strain
e. Trim outer shield 1 inch below mark made in step (c) Relief (5)
above.

f. Prepare and terminate individual conductors in accor-
dance with established practices.

g. Assemble backshell (1) to connector and tighten se-
curely, in desired orientation.

h. Install cover (2) on backshell (1) making sure cover is
aligned properly with backshell surface. Tighten capti- i. Engage strain relief (5) with backshell and tighten se-
vated screw in cover (2) securely. curely. Tighten strain relief saddles securely on cable
or harness.
i. Install adapter (3) on backshell and tighten securely.
NOTE: As with any electrical connector assembly proce-
j. Flare shield over tapered end of adapter (3) and slide dure, be sure to use the proper tools. For convenient,
ground ring (4) into place over shield. Hold ring in posi- reliable assembly of the connector and backshell, it is
tion and trim any exposed shield strands adjacent to suggested that Glenair's connector holding tools, strap
rear threads on backshell. wrenches and connector pliers be used.
