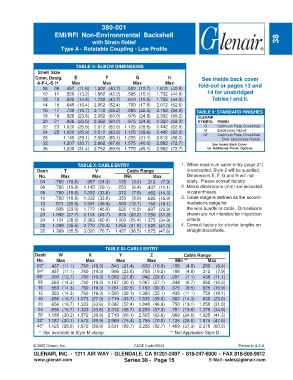

P. 151

380-001
                        EMI/RFI Non-Environmental Backshell
                                        with Strain Relief                                                           38
                          Type A - Rotatable Coupling - Low Profile



                                 TABLE III: ELBOW DIMENSIONS
                 Shell Size
                Conn. Desig.    E            F            G            H             See inside back cover
                A-F-L-S H      Max          Max          Max          Max           fold-out or pages 13 and
                   08   09  .457 (11.6)  1.602 (40.7)  .500 (12.7)  1.612 (40.9)
                   10   11  .520 (13.2)  1.662 (42.2)  .595 (15.1)  1.732 (44.0)        14 for unabridged
                   12   13  .582 (14.8)  1.722 (43.7)  .610 (15.5)  1.752 (44.5)          Tables I and II.
                   14   15  .645 (16.4)  2.062 (52.4)  .700 (17.8)  2.072 (52.6)
                   16   17  .738 (18.7)  2.172 (55.2)  .885 (22.5)  2.162 (54.9)   TABLE II: STANDARD FINISHES
                   18   19  .926 (23.5)  2.362 (60.0)  .975 (24.8)  2.332 (59.2)    GLENAIR
                   20   21  .926 (23.5)  2.362 (60.0)  .975 (24.8)  2.332 (59.2)    SYMBOL  FINISH
                   22   23 1.020 (25.9)  2.512 (63.8)  1.125 (28.6)  2.442 (62.0)     B     Cadmium Plate, Olive Drab
                   24   25 1.020 (25.9)  2.512 (63.8)  1.125 (28.6)  2.442 (62.0)     M     Electroless Nickel
                   28      1.145 (29.1)  2.562 (65.1)  1.225 (31.1)  2.612 (66.3)     NF    Cadmium Plate, Olive Drab
                                                                                                Over Electroless Nickel
                   32      1.207 (30.7)  2.662 (67.6)  1.575 (40.0)  2.862 (72.7)         See Inside Back Cover
                   36      1.238 (31.4)  2.752 (69.9)  1.775 (45.1)  2.862 (72.7)       for Additional Finish Options


                                  TABLE X: CABLE ENTRY                       1. When maximum cable entry (page 21)
                 Dash       T            V            Cable Range              is exceeded, Style 2 will be supplied.
                 No.       Max          Max          Min         Max           Dimensions E, F, G and H will not
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)     apply.  Please consult factory.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)  2. Metric dimensions (mm) are indicated
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)    in parentheses.
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)  3. Cable range is defined as the accom-
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)    modations range for
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)    the wire bundle or cable.  Dimensions
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)    shown are not intended for inspection
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)   criteria.
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)  4. Consult factory for shorter lengths on
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)   straight backshells.


                                             TABLE XI: CABLE ENTRY
                Dash      W           X            Y            Z             Cable Range
                No.      Max         Max          Max          Max        Min **        Max
                03*   .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                04*   .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                06*   .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                 08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                 10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                 12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                 16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                 20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
                 24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
                 28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
                32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
                40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
                 *  Not available in Style M clamp.                                                    ** Not Applicable Style D


               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 38 -  Page 15               E-Mail: sales@glenair.com
