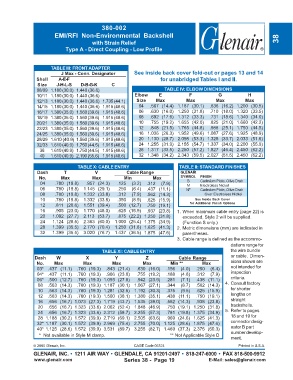

Page 155 - Circular Connector Backshells and Accessories

380-002
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type A - Direct Coupling - Low Profile

TABLE III: FRONT ADAPTER
J Max - Conn. Designator See inside back cover fold-out or pages 13 and 14
Shell A-E-F for unabridged Tables I and II.
Size J-H-L-S D-B-G-K C
08/09 1.180 (30.0) 1.440 (36.6) TABLE IV: ELBOW DIMENSIONS
10/11 1.180 (30.0) 1.440 (36.6) Elbow E F G H
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1) Size Max Max Max Max
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) 04 .567 (14.4) 1.187 (30.1) .636 (16.2) 1.200 (30.5)
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 06 .630 (16.0) 1.250 (31.8) .710 (18.0) 1.320 (33.5)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 08 .692 (17.6) 1.312 (33.3) .731 (18.6) 1.340 (34.0)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 10 .755 (19.2) 1.655 (42.0) .825 (21.0) 1.660 (42.2)
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 12 .848 (21.5) 1.765 (44.8) .988 (25.1) 1.750 (44.5)
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 16 1.036 (26.3) 1.952 (49.6) 1.087 (27.6) 1.925 (48.9)
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 20 1.130 (28.7) 2.098 (53.3) 1.325 (33.7) 2.033 (51.6)
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 24 1.255 (31.9) 2.155 (54.7) 1.337 (34.0) 2.200 (55.9)
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 28 1.317 (33.5) 2.250 (57.2) 1.827 (46.4) 2.450 (62.2)
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) 32 1.348 (34.2) 2.343 (59.5) 2.027 (51.5) 2.450 (62.2)

TABLE X: CABLE ENTRY TABLE II: STANDARD FINISHES
Dash T V Cable Range GLENAIR
No. Max Max Min Max SYMBOL FINISH
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) B Cadmium Plate, Olive Drab
M
Electroless Nickel
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) NF Cadmium Plate, Olive Drab
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) Over Electroless Nickel
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) See Inside Back Cover
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) for Additional Finish Options
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) 1. When maximum cable entry (page 22) is
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) exceeded, Style 2 will be supplied.
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) (Function S only.)
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) 2. Metric dimensions (mm) are indicated in
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) parentheses.
3. Cable range is defined as the accommo-
dations range for
TABLE XI: CABLE ENTRY the wire bundle
Dash W X Y Z Cable Range or cable. Dimen-
No. Max Max Max Max Min ** Max sions shown are
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4) not intended for
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9) inspection
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1) criteria.
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3) 4. Consult factory
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9) for shorter
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1) lengths on
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8) straight
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8) backshells.
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9) 5. Refer to pages
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3) 18 and 19 for
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6) connector desig-
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3) nator B part
* Not available in Style M clamp. ** Not Applicable Style D number develop-
ment.
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 19 E-Mail: sales@glenair.com
