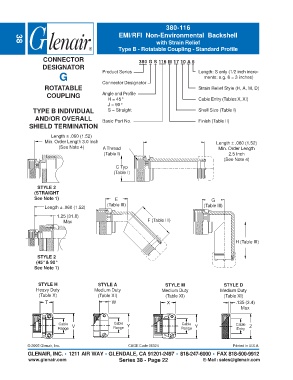

380-116
                                                   EMI/RFI Non-Environmental Backshell
                                                                  with Strain Relief
        38
                                                   Type B - Rotatable Coupling - Standard Profile

                   CONNECTOR                               380 G S 116 M 17 10 A 6
                   DESIGNATOR               Product Series                          Length: S only (1/2 inch incre-
                          G                                                           ments: e.g. 6 = 3 inches)

                                            Connector Designator
                    ROTATABLE                                                       Strain Relief Style (H, A, M, D)
                     COUPLING               Angle and Profile
                                              H = 45°                               Cable Entry (Tables X, XI)
                                              J = 90°
               TYPE B INDIVIDUAL              S = Straight                          Shell Size (Table I)
                AND/OR OVERALL              Basic Part No.                          Finish (Table II)
             SHIELD TERMINATION

                      Length ± .060 (1.52)
                    Min. Order Length 3.0 Inch                                             Length ± .060 (1.52)
                          (See Note 4)      A Thread                                        Min. Order Length
                                            (Table I)                                            2.5 Inch
                                                                                               (See Note 4)
                                                 C Typ
                                                 (Table I)


                 STYLE 2
               (STRAIGHT
               See Note 1)                       E                                       G
                                              (Table III)                             (Table III)
                    Length ± .060 (1.52)
                         1.25 (31.8)
                            Max                                F (Table III)



                                                                                                   H (Table III)


                 STYLE 2
                (45° & 90°
               See Note 1)


                 STYLE H                  STYLE A                     STYLE M                  STYLE D
                Heavy Duty              Medium Duty                  Medium Duty             Medium Duty
                 (Table X)                (Table XI)                  (Table XI)               (Table XI)
                    T                           W                      X                           .135 (3.4)
                                                                                                      Max


                          Cable  V               Cable  Y                    Cable  Y               Cable  Z
                         Range                  Range                        Range                  Entry



             © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
             GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
             www.glenair.com                       Series 38 - Page 22                E-Mail: sales@glenair.com
