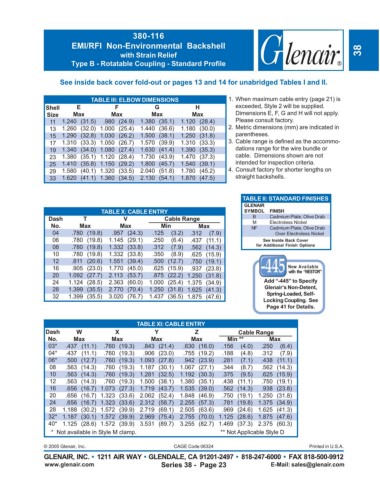

Page 159 - Circular Connector Backshells and Accessories

380-116
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type B - Rotatable Coupling - Standard Profile

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: ELBOW DIMENSIONS 1. When maximum cable entry (page 21) is
Shell E F G H exceeded, Style 2 will be supplied.
Size Max Max Max Max Dimensions E, F, G and H will not apply.
11 1.240 (31.5) .980 (24.9) 1.380 (35.1) 1.120 (28.4) Please consult factory.
13 1.260 (32.0) 1.000 (25.4) 1.440 (36.6) 1.180 (30.0) 2. Metric dimensions (mm) are indicated in
15 1.290 (32.8) 1.030 (26.2) 1.500 (38.1) 1.250 (31.8) parentheses.
17 1.310 (33.3) 1.050 (26.7) 1.570 (39.9) 1.310 (33.3) 3. Cable range is defined as the accommo-
19 1.340 (34.0) 1.080 (27.4) 1.630 (41.4) 1.390 (35.3) dations range for the wire bundle or
23 1.380 (35.1) 1.120 (28.4) 1.730 (43.9) 1.470 (37.3) cable. Dimensions shown are not
25 1.410 (35.8) 1.150 (29.2) 1.800 (45.7) 1.540 (39.1) intended for inspection criteria.
29 1.580 (40.1) 1.320 (33.5) 2.040 (51.8) 1.780 (45.2) 4. Consult factory for shorter lengths on
33 1.620 (41.1) 1.360 (34.5) 2.130 (54.1) 1.870 (47.5) straight backshells.

TABLE II: STANDARD FINISHES
GLENAIR
TABLE X: CABLE ENTRY SYMBOL FINISH
Dash T V Cable Range B Cadmium Plate, Olive Drab
M
No. Max Max Min Max NF Electroless Nickel
Cadmium Plate, Olive Drab
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) Over Electroless Nickel
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) See Inside Back Cover
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) for Additional Finish Options
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9)
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1)
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) Now Available
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) with the “NESTOR”
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) Add “-445” to Specify
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) Glenair’s Non-Detent,
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) Spring-Loaded, Self-
Locking Coupling. See
Page 41 for Details.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 23 E-Mail: sales@glenair.com
