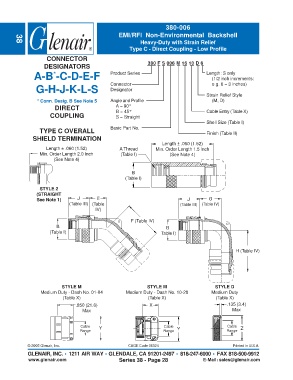

Page 164 - Circular Connector Backshells and Accessories

380-006
EMI/RFI Non-Environmental Backshell
Heavy-Duty with Strain Relief
38
Type C - Direct Coupling - Low Profile
CONNECTOR
DESIGNATORS 380 F S 006 M 16 10 D 6
A-B -C-D-E-F Product Series Length: S only
*
(1/2 inch increments:
G-H-J-K-L-S Connector e.g. 6 = 3 inches)
Designator
Strain Relief Style
* Conn. Desig. B See Note 5 Angle and Profile (M, D)
DIRECT A = 90° Cable Entry (Table X)
B = 45°
COUPLING S = Straight
Shell Size (Table I)
Basic Part No.
TYPE C OVERALL Finish (Table II)
SHIELD TERMINATION
Length ± .060 (1.52)
Length ± .060 (1.52) A Thread Min. Order Length 1.5 Inch
Min. Order Length 2.0 Inch (Table I) (See Note 4)
(See Note 4)

B
(Table I)
STYLE 2
(STRAIGHT
See Note 1) J E J G
(Table III) (Table (Table III) (Table IV)
IV)

F (Table IV)
B B
(Table I) (Table I)

H (Table IV)

STYLE M STYLE M STYLE D
Medium Duty - Dash No. 01-04 Medium Duty - Dash No. 10-28 Medium Duty
(Table X) (Table X) (Table X)
.850 (21.6) X .135 (3.4)
Max Max

Cable Y Cable Y Cable Z
Range Range Range

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 28 E-Mail: sales@glenair.com
