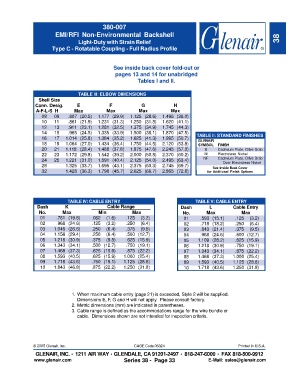

Page 169 - Circular Connector Backshells and Accessories

380-007
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief 38
Type C - Rotatable Coupling - Full Radius Profile

See inside back cover fold-out or
pages 13 and 14 for unabridged
Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .807 (20.5) 1.177 (29.9) 1.125 (28.6) 1.495 (38.0)
10 11 .861 (21.9) 1.231 (31.3) 1.250 (31.8) 1.620 (41.1)
12 13 .911 (23.1) 1.281 (32.5) 1.375 (34.9) 1.745 (44.3)
14 15 .965 (24.5) 1.335 (33.9) 1.500 (38.1) 1.870 (47.5) TABLE Il: STANDARD FINISHES
16 17 1.014 (25.8) 1.384 (35.2) 1.625 (41.3) 1.995 (50.7)
GLENAIR
18 19 1.064 (27.0) 1.434 (36.4) 1.750 (44.5) 2.120 (53.8) SYMBOL FINISH
20 21 1.118 (28.4) 1.488 (37.8) 1.875 (47.6) 2.245 (57.0) B Cadmium Plate, Olive Drab
22 23 1.172 (29.8) 1.542 (39.2) 2.000 (50.8) 2.370 (60.2) M Electroless Nickel
NF Cadmium Plate, Olive Drab
24 25 1.221 (31.0) 1.591 (40.4) 2.125 (54.0) 2.495 (63.4)
Over Electroless Nickel
28 1.325 (33.7) 1.695 (43.1) 2.375 (60.3) 2.745 (69.7)
See Inside Back Cover
32 1.428 (36.3) 1.798 (45.7) 2.625 (66.7) 2.865 (72.8) for Additional Finish Options

TABLE IV: CABLE ENTRY TABLE V: CABLE ENTRY
Dash K Cable Range Dash L Cable Entry
No. Max Min Max No. Max Max
01 .781 (19.8) .062 (1.6) .125 (3.2) 01 .593 (15.1) .125 (3.2)
02 .968 (24.6) .125 (3.2) .250 (6.4) 02 .718 (18.2) .250 (6.4)
03 1.046 (26.6) .250 (6.4) .375 (9.5) 03 .843 (21.4) .375 (9.5)
04 1.156 (29.4) .250 (6.4) .500 (12.7) 04 .968 (24.6) .500 (12.7)
05 1.218 (30.9) .375 (9.5) .625 (15.9) 05 1.109 (28.2) .625 (15.9)
06 1.343 (34.1) .500 (12.7) .750 (19.1) 06 1.218 (30.9) .750 (19.1)
07 1.468 (37.3) .625 (15.9) .875 (22.2) 07 1.343 (34.1) .875 (22.2)
08 1.593 (40.5) .625 (15.9) 1.000 (25.4) 08 1.468 (37.3) 1.000 (25.4)
09 1.718 (43.6) .750 (19.1) 1.125 (28.6) 09 1.593 (40.5) 1.125 (28.6)
10 1.843 (46.8) .875 (22.2) 1.250 (31.8) 10 1.718 (43.6) 1.250 (31.8)

1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 33 E-Mail: sales@glenair.com
