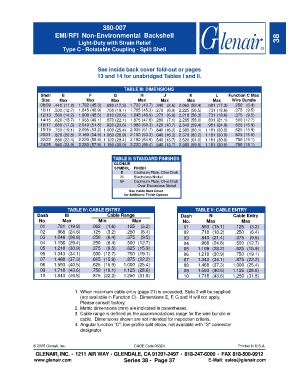

Page 173 - Circular Connector Backshells and Accessories

380-007
EMI/RFI Non-Environmental Backshell 38
Light-Duty with Strain Relief
Type C - Rotatable Coupling - Split Shell

See inside back cover fold-out or pages
13 and 14 for unabridged Tables I and II.

TABLE III: DIMENSIONS
Shell E F G H J K L Function C Max
Size Max Max Max Max Max Max Max Wire Bundle
08/09 .440 (11.2) 1.782 (45.3) .680 (17.3) 1.722 (43.7) .340 (8.6) 2.062 (52.4) .681 (17.3) .250 (6.4)
10/11 .500 (12.7) 1.845 (46.9) .750 (19.1) 1.785 (45.3) .270 (6.9) 2.225 (56.5) .731 (18.6) .375 (9.5)
12/13 .560 (14.2) 1.908 (48.5) .810 (20.6) 1.848 (46.9) .270 (6.9) 2.218 (56.3) .731 (18.6) .375 (9.5)
14/15 .620 (15.7) 1.935 (49.1) .870 (22.1) 1.875 (47.6) .280 (7.1) 2.285 (58.0) .831 (21.1) .500 (12.7)
16/17 .680 (17.3) 2.040 (51.8) .930 (23.6) 1.980 (50.3) .420 (10.7) 2.340 (59.4) .981 (24.9) .625 (15.9)
18/19 .750 (19.1) 2.095 (53.2) 1.000 (25.4) 2.035 (51.7) .640 (16.3) 2.365 (60.1) 1.181 (30.0) .625 (15.9)
20/21 .820 (20.8) 2.160 (54.9) 1.060 (26.9) 2.100 (53.3) .640 (16.3) 2.370 (60.2) 1.181 (30.0) .625 (15.9)
22/23 .880 (22.4) 2.220 (56.4) 1.120 (28.4) 2.160 (54.9) .540 (13.7) 2.520 (64.0) 1.181 (30.0) .750 (19.1)
24/25 .940 (23.9) 2.280 (57.9) 1.180 (30.0) 2.220 (56.4) .540 (13.7) 2.360 (59.9) 1.181 (30.0) .750 (19.1)

TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL FINISH
B Cadmium Plate, Olive Drab
M Electroless Nickel
NF Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options

TABLE IV: CABLE ENTRY TABLE V: CABLE ENTRY
Dash M Cable Range Dash N Cable Entry
No. Max Min Max No. Max Max
01 .781 (19.8) .062 (1.6) .125 (3.2) 01 .593 (15.1) .125 (3.2)
02 .968 (24.6) .125 (3.2) .250 (6.4) 02 .718 (18.2) .250 (6.4)
03 1.046 (26.6) .250 (6.4) .375 (9.5) 03 .843 (21.4) .375 (9.5)
04 1.156 (29.4) .250 (6.4) .500 (12.7) 04 .968 (24.6) .500 (12.7)
05 1.218 (30.9) .375 (9.5) .625 (15.9) 05 1.109 (28.2) .625 (15.9)
06 1.343 (34.1) .500 (12.7) .750 (19.1) 06 1.218 (30.9) .750 (19.1)
07 1.468 (37.3) .625 (15.9) .875 (22.2) 07 1.343 (34.1) .875 (22.2)
08 1.593 (40.5) .625 (15.9) 1.000 (25.4) 08 1.468 (37.3) 1.000 (25.4)
09 1.718 (43.6) .750 (19.1) 1.125 (28.6) 09 1.593 (40.5) 1.125 (28.6)
10 1.843 (46.8) .875 (22.2) 1.250 (31.8) 10 1.718 (43.6) 1.250 (31.8)

1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied
(not available in Function C). Dimensions E, F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. Angular function "C", low-profile split elbow, not available with "S" connector
designator.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 37 E-Mail: sales@glenair.com
