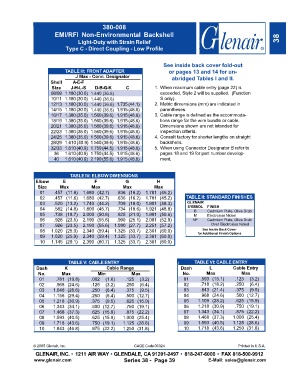

380-008
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief 38
Type C - Direct Coupling - Low Profile

See inside back cover fold-out
TABLE III: FRONT ADAPTER or pages 13 and 14 for un-
J Max - Conn. Designator abridged Tables I and II.
Shell A-E-F
Size J-H-L-S D-B-G-K C 1. When maximum cable entry (page 22) is
08/09 1.180(30.0) 1.440 (36.6) exceeded, Style 2 will be supplied. (Function
10/11 1.180(30.0) 1.440 (36.6) S only).
12/13 1.180(30.0) 1.440 (36.6) 1.735(44.1) 2. Metric dimensions (mm) are indicated in
14/15 1.180(30.0) 1.440 (36.6) 1.915(48.6) parentheses.
16/17 1.380(35.0) 1.560(39.6) 1.915(48.6) 3. Cable range is defined as the accommoda-
18/19 1.380(35.0) 1.560(39.6) 1.915(48.6) tions range for the wire bundle or cable.
20/21 1.380(35.0) 1.560(39.6) 1.915(48.6) Dimensions shown are not intended for
22/23 1.380(35.0) 1.560(39.6) 1.915(48.6) inspection criteria.
24/25 1.380(35.0) 1.560(39.6) 1.915(48.6) 4. Consult factory for shorter lengths on straight
28/29 1.610 (40.9) 1.560(39.6) 1.915(48.6) backshells.
32/33 1.610(40.9) 1.750(44.5) 1.915(48.6) 5. When using Connector Designator B refer to
36 1.610(40.9) 1.750(44.5) 1.915(48.6) pages 18 and 19 for part number develop-
40 1.610(40.9) 2.190(55.6) 1.915(48.6) ment.

TABLE IV: ELBOW DIMENSIONS
Elbow E F G H
Size Max Max Max Max
01 .457 (11.6) 1.680 (42.7) .636 (16.2) 1.781 (45.2)
02 .457 (11.6) 1.680 (42.7) .636 (16.2) 1.781 (45.2) TABLE II: STANDARD FINISHES
03 .520 (13.2) 1.740 (44.2) .709 (18.0) 1.901 (48.3) GLENAIR
04 .582 (14.8) 1.800 (45.7) .734 (18.6) 1.921 (48.8) SYMBOL FINISH
B
Cadmium Plate, Olive Drab
05 .738 (18.7) 2.000 (50.8) .825 (21.0) 1.991 (50.6) M Electroless Nickel
06 .926 (23.5) 2.190 (55.6) .990 (25.1) 2.081 (52.9) NF Cadmium Plate, Olive Drab
07 .926 (23.5) 2.190 (55.6) 1.090 (27.7) 2.251 (57.2) Over Electroless Nickel
08 1.020 (25.9) 2.340 (59.4) 1.325 (33.7) 2.361 (60.0) See Inside Back Cover
09 1.020 (25.9) 2.340 (59.4) 1.325 (33.7) 2.361 (60.0) for Additional Finish Options
10 1.145 (29.1) 2.390 (60.7) 1.325 (33.7) 2.361 (60.0)

TABLE V: CABLE ENTRY TABLE VI: CABLE ENTRY
Dash K Cable Range Dash L Cable Entry
No. Max Min Max No. Max Max
01 .781 (19.8) .062 (1.6) .125 (3.2) 01 .593 (15.1) .125 (3.2)
02 .968 (24.6) .125 (3.2) .250 (6.4) 02 .718 (18.2) .250 (6.4)
03 1.046 (26.6) .250 (6.4) .375 (9.5) 03 .843 (21.4) .375 (9.5)
04 1.156 (29.4) .250 (6.4) .500 (12.7) 04 .968 (24.6) .500 (12.7)
05 1.218 (30.9) .375 (9.5) .625 (15.9) 05 1.109 (28.2) .625 (15.9)
06 1.343 (34.1) .500 (12.7) .750 (19.1) 06 1.218 (30.9) .750 (19.1)
07 1.468 (37.3) .625 (15.9) .875 (22.2) 07 1.343 (34.1) .875 (22.2)
08 1.593 (40.5) .625 (15.9) 1.000 (25.4) 08 1.468 (37.3) 1.000 (25.4)
09 1.718 (43.6) .750 (19.1) 1.125 (28.6) 09 1.593 (40.5) 1.125 (28.6)
10 1.843 (46.8) .875 (22.2) 1.250 (31.8) 10 1.718 (43.6) 1.250 (31.8)
