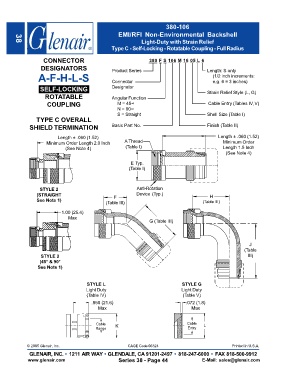

Page 180 - Circular Connector Backshells and Accessories

380-106
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief
3
8
Type C - Self-Locking - Rotatable Coupling - Full Radius
CONNECTOR 380 F S 106 M 16 05 L 6
DESIGNATORS Product Series Length: S only
A-F-H-L-S Connector (1/2 inch increments:
e.g. 6 = 3 inches)
SELF-LOCKING Designator Strain Relief Style (L, G)
ROTATABLE Angular Function
COUPLING M = 45∞ Cable Entry (Tables IV, V)
N = 90∞
S = Straight Shell Size (Table I)
TYPE C OVERALL
SHIELD TERMINATION Basic Part No. Finish (Table II)

Length ± .060 (1.52) Length ± .060 (1.52)
Minimum Order Length 2.0 Inch A Thread Minimum Order
(See Note 4) (Table I) Length 1.5 Inch
(See Note 4)

E Typ.
(Table I)

STYLE 2 Anti-Rotation
(STRAIGHT F Device (Typ.) H
See Note 1) (Table III) (Table III)

1.00 (25.4)
Max
G (Table III)

J
(Table
STYLE 2 III)
(45° & 90°
See Note 1)

STYLE L STYLE G
Light Duty Light Duty
(Table IV) (Table V)
.850 (21.6) .072 (1.8)
Max Max

Cable K Cable L
Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 44 E-Mail: sales@glenair.com
