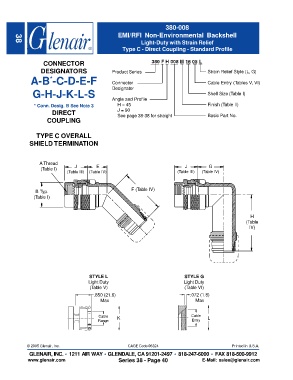

Page 176 - Circular Connector Backshells and Accessories

380-008
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief
38
Type C - Direct Coupling - Standard Profile

CONNECTOR 380 F H 008 M 16 05 L
DESIGNATORS Product Series Strain Relief Style (L, G)
A-B -C-D-E-F Connector Cable Entry (Tables V, VI)
*
G-H-J-K-L-S Designator Shell Size (Table I)
Angle and Profile
* Conn. Desig. B See Note 3 H = 45° Finish (Table II)
DIRECT J = 90° Basic Part No.
See page 38-38 for straight
COUPLING

TYPE C OVERALL
SHIELD TERMINATION

A Thread
(Table I) J E J G
(Table III) (Table IV) (Table III) (Table IV)

F (Table IV)
B Typ.
(Table I)

H
(Table
IV)

STYLE L STYLE G
Light Duty Light Duty
(Table V) (Table VI)
.850 (21.6) .072 (1.8)
Max Max

Cable K Cable L
Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 40 E-Mail: sales@glenair.com
