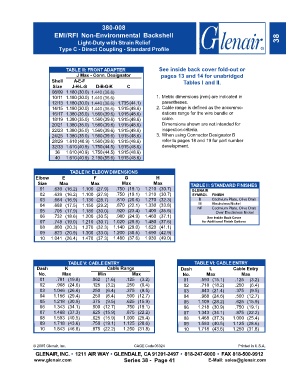

Page 177 - Circular Connector Backshells and Accessories
P. 177

380-008
                        EMI/RFI  Non-Environmental  Backshell
                                 Light-Duty with Strain Relief                                                        38
                          Type C - Direct Coupling - Standard Profile



                             TABLE III: FRONT ADAPTER              See inside back cover fold-out or
                                 J Max - Conn. Designator           pages 13 and 14 for unabridged
                       Shell    A-E-F                                         Tables I and II.
                       Size    J-H-L-S   D-B-G-K      C
                       08/09 1.180(30.0) 1.440 (36.6)
                       10/11 1.180(30.0) 1.440 (36.6)             1. Metric dimensions (mm) are indicated in
                       12/13 1.180(30.0) 1.440 (36.6)  1.735(44.1)   parentheses.
                       14/15 1.180(30.0) 1.440 (36.6)  1.915(48.6)  2. Cable range is defined as the accommo-
                       16/17 1.380(35.0) 1.560(39.6) 1.915(48.6)     dations range for the wire bundle or
                       18/19 1.380(35.0) 1.560(39.6) 1.915(48.6)     cable.
                       20/21 1.380(35.0) 1.560(39.6) 1.915(48.6)     Dimensions shown are not intended for
                       22/23 1.380(35.0) 1.560(39.6) 1.915(48.6)     inspection criteria.
                       24/25 1.380(35.0) 1.560(39.6) 1.915(48.6)  3. When using Connector Designator B
                       28/29 1.610 (40.9) 1.560(39.6) 1.915(48.6)    refer to pages 18 and 19 for part number
                       32/33 1.610(40.9) 1.750(44.5) 1.915(48.6)     development.
                        36   1.610(40.9) 1.750(44.5) 1.915(48.6)
                        40   1.610(40.9) 2.190(55.6) 1.915(48.6)


                              TABLE IV: ELBOW DIMENSIONS
                Elbow      E            F            G            H
                 Size     Max          Max          Max          Max             TABLE II: STANDARD FINISHES
                  01   .639 (16.2)  1.100 (27.9)  .750 (19.1)  1.210 (30.7)      GLENAIR
                  02   .639 (16.2)  1.100 (27.9)  .750 (19.1)  1.210 (30.7)      SYMBOL   FINISH
                  03   .664 (16.9)  1.130 (28.7)  .810 (20.6)  1.270 (32.3)         B     Cadmium Plate, Olive Drab
                  04   .688 (17.5)  1.150 (29.2)  .870 (22.1)  1.330 (33.8)         M     Electroless Nickel
                  05   .705 (17.9)  1.180 (30.0)  .920 (23.4)  1.400 (35.6)         NF    Cadmium Plate, Olive Drab
                                                                                              Over Electroless Nickel
                  06   .732 (18.6)  1.200 (30.5)  .980 (24.9)  1.460 (37.1)             See Inside Back Cover
                  07   .748 (19.0)  1.210 (30.7)  1.020 (25.9)  1.480 (37.6)          for Additional Finish Options
                  08   .800 (20.3)  1.270 (32.3)  1.140 (29.0)  1.620 (41.1)
                  09   .823 (20.9)  1.300 (33.0)  1.200 (30.5)  1.690 (42.9)
                  10  1.041 (26.4)  1.470 (37.3)  1.480 (37.6)  1.930 (49.0)





                              TABLE V: CABLE ENTRY                                TABLE VI: CABLE ENTRY
                Dash        K                 Cable Range                    Dash        L        Cable Entry
                 No.       Max            Min           Max                  No.       Max            Max
                  01    .781 (19.8)    .062  (1.6)    .125  (3.2)             01     .593 (15.1)   .125  (3.2)
                  02    .968 (24.6)    .125  (3.2)    .250  (6.4)             02     .718 (18.2)   .250  (6.4)
                  03   1.046 (26.6)    .250  (6.4)    .375  (9.5)             03     .843 (21.4)   .375  (9.5)
                  04   1.156 (29.4)    .250  (6.4)    .500 (12.7)             04     .968 (24.6)   .500 (12.7)
                  05   1.218 (30.9)    .375  (9.5)    .625 (15.9)             05    1.109 (28.2)   .625 (15.9)
                  06   1.343 (34.1)    .500 (12.7)    .750 (19.1)             06    1.218 (30.9)   .750 (19.1)
                  07   1.468 (37.3)    .625 (15.9)    .875 (22.2)             07    1.343 (34.1)   .875 (22.2)
                  08   1.593 (40.5)    .625 (15.9)   1.000 (25.4)             08    1.468 (37.3)  1.000 (25.4)
                  09   1.718 (43.6)    .750 (19.1)   1.125 (28.6)             09    1.593 (40.5)  1.125 (28.6)
                  10   1.843 (46.8)    .875 (22.2)   1.250 (31.8)             10    1.718 (43.6)  1.250 (31.8)



               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 38 -  Page 41               E-Mail: sales@glenair.com
