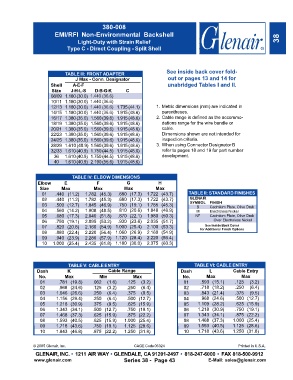

Page 179 - Circular Connector Backshells and Accessories
P. 179

380-008
                        EMI/RFI  Non-Environmental  Backshell
                                  Light-Duty with Strain Relief                                                       38
                             Type C - Direct Coupling - Split Shell




                                                                       See inside back cover fold-
                            TABLE III: FRONT ADAPTER
                                 J Max - Conn. Designator              out or pages 13 and 14 for
                      Shell    A-E-F                                   unabridged Tables I and II.
                       Size    J-H-L-S   D-B-G-K      C
                      08/09 1.180(30.0) 1.440 (36.6)
                      10/11 1.180(30.0) 1.440 (36.6)
                      12/13 1.180(30.0) 1.440 (36.6)  1.735(44.1)  1. Metric dimensions (mm) are indicated in
                      14/15 1.180(30.0) 1.440 (36.6)  1.915(48.6)    parentheses.
                      16/17 1.380(35.0) 1.560(39.6) 1.915(48.6)   2. Cable range is defined as the accommo-
                      18/19 1.380(35.0) 1.560(39.6) 1.915(48.6)      dations range for the wire bundle or
                      20/21 1.380(35.0) 1.560(39.6) 1.915(48.6)      cable.
                      22/23 1.380(35.0) 1.560(39.6) 1.915(48.6)      Dimensions shown are not intended for
                      24/25 1.380(35.0) 1.560(39.6) 1.915(48.6)      inspection criteria.
                      28/29 1.610 (40.9) 1.560(39.6) 1.915(48.6)  3. When using Connector Designator B
                      32/33 1.610(40.9) 1.750(44.5) 1.915(48.6)      refer to pages 18 and 19 for part number
                        36  1.610(40.9) 1.750(44.5) 1.915(48.6)      development.
                        40  1.610(40.9) 2.190(55.6) 1.915(48.6)


                               TABLE IV: ELBOW DIMENSIONS
                 Elbow      E            F            G            H
                  Size     Max          Max          Max          Max
                   01   .440 (11.2)  1.782 (45.3)  .680 (17.3)  1.722 (43.7)    TABLE II: STANDARD FINISHES
                   02   .440 (11.2)  1.782 (45.3)  .680 (17.3)  1.722 (43.7)    GLENAIR
                   03   .500 (12.7)  1.845 (46.9)  .750 (19.1)  1.785 (45.3)    SYMBOL   FINISH
                                                                                         Cadmium Plate, Olive Drab
                                                                                   B
                   04   .560 (14.2)  1.908 (48.5)  .810 (20.6)  1.848 (46.9)       M     Electroless Nickel
                   05   .680 (17.3)  2.040 (51.8)  .870 (22.1)  1.980 (50.3)       NF    Cadmium Plate, Olive Drab
                   06   .750 (19.1)  2.095 (53.2)  .930 (23.6)  2.035 (51.7)                 Over Electroless Nickel
                                                                                       See Inside Back Cover
                   07   .820 (20.8)  2.160 (54.9) 1.000 (25.4)  2.100 (53.3)         for Additional Finish Options
                   08   .880 (22.4)  2.220 (56.4) 1.060 (26.9)  2.160 (54.9)
                   09   .940 (23.9)  2.280 (57.9) 1.120 (28.4)  2.220 (56.4)
                   10  1.000 (25.4)  2.435 (61.8) 1.180 (30.0)  2.375 (60.3)



                              TABLE V: CABLE ENTRY                                TABLE VI: CABLE ENTRY
                 Dash        K                Cable Range                    Dash        L        Cable Entry
                 No.        Max            Min           Max                 No.       Max            Max
                  01      .781 (19.8)   .062  (1.6)   .125  (3.2)             01     .593 (15.1)   .125  (3.2)
                  02      .968 (24.6)   .125  (3.2)   .250  (6.4)             02     .718 (18.2)   .250  (6.4)
                  03     1.046 (26.6)   .250  (6.4)   .375  (9.5)             03     .843 (21.4)   .375  (9.5)
                  04     1.156 (29.4)   .250  (6.4)   .500 (12.7)             04     .968 (24.6)   .500 (12.7)
                  05     1.218 (30.9)   .375  (9.5)   .625 (15.9)             05    1.109 (28.2)   .625 (15.9)
                  06    1.343 (34.1)    .500 (12.7)   .750 (19.1)             06    1.218 (30.9)   .750 (19.1)
                  07    1.468 (37.3)    .625 (15.9)   .875 (22.2)             07    1.343 (34.1)   .875 (22.2)
                  08    1.593 (40.5)    .625 (15.9)  1.000 (25.4)             08    1.468 (37.3)  1.000 (25.4)
                  09    1.718 (43.6)    .750 (19.1)  1.125 (28.6)             09    1.593 (40.5)  1.125 (28.6)
                  10    1.843 (46.8)    .875 (22.2)  1.250 (31.8)             10    1.718 (43.6)  1.250 (31.8)
