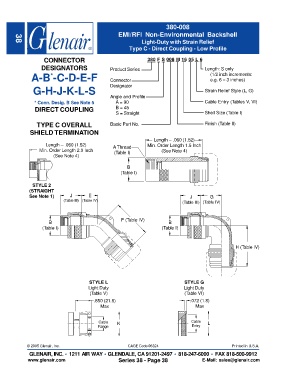

Page 174 - Circular Connector Backshells and Accessories

380-008
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief
38
Type C - Direct Coupling - Low Profile

CONNECTOR 380 F S 008 M 16 05 L 6
DESIGNATORS Product Series Length: S only
A-B -C-D-E-F Connector (1/2 inch increments:
*
e.g. 6 = 3 inches)
G-H-J-K-L-S Designator Strain Relief Style (L, G)

Angle and Profile
* Conn. Desig. B See Note 5 A = 90° Cable Entry (Tables V, VI)
DIRECT COUPLING B = 45°
S = Straight Shell Size (Table I)

TYPE C OVERALL Basic Part No. Finish (Table II)
SHIELD TERMINATION
Length – .060 (1.52)
Length – .060 (1.52) Min. Order Length 1.5 Inch
A Thread
Min. Order Length 2.0 Inch (Table I) (See Note 4)
(See Note 4)

B
(Table I)

STYLE 2
(STRAIGHT
See Note 1) J E J G
(Table III) (Table IV)
(Table III) (Table IV)

F (Table IV)
B B
(Table I) (Table I)

H (Table IV)

STYLE L STYLE G
Light Duty Light Duty
(Table V) (Table VI)
.850 (21.6) .072 (1.8)
Max Max

Cable K Cable L
Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 38 E-Mail: sales@glenair.com
