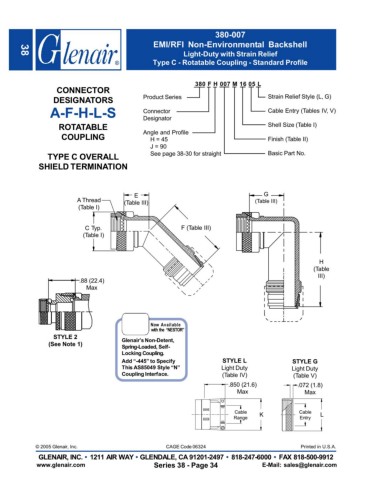

380-007
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief
38
Type C - Rotatable Coupling - Standard Profile

380 F H 007 M 16 05 L
CONNECTOR
DESIGNATORS Product Series Strain Relief Style (L, G)
A-F-H-L-S Connector Cable Entry (Tables IV, V)
Designator
ROTATABLE Shell Size (Table I)
COUPLING Angle and Profile Finish (Table II)
H = 45°
J = 90°
TYPE C OVERALL See page 38-30 for straight Basic Part No.
SHIELD TERMINATION

E G
A Thread (Table III)
(Table III)
(Table I)

C Typ. F (Table III)
(Table I)

H
(Table
III)
.88 (22.4)
Max

Now Available
with the ´NESTORµ
STYLE 2
(See Note 1) Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling.
Add “-445” to Specify STYLE L STYLE G
This AS85049 Style “N” Light Duty Light Duty
Coupling Interface. (Table IV) (Table V)
.850 (21.6) .072 (1.8)
Max Max

Cable K Cable L
Range Entry
