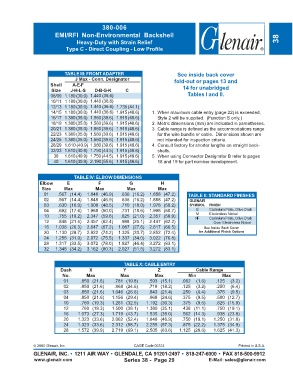

Page 165 - Circular Connector Backshells and Accessories

380-006
EMI/RFI Non-Environmental Backshell
Heavy-Duty with Strain Relief 38
Type C - Direct Coupling - Low Profile

TABLE III: FRONT ADAPTER See inside back cover
J Max - Conn. Designator fold-out or pages 13 and
Shell A-E-F 14 for unabridged
Size J-H-L-S D-B-G-K C
08/09 1.180 (30.0) 1.440 (36.6) Tables I and II.
10/11 1.180 (30.0) 1.440 (36.6)
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1)
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) 1. When maximum cable entry (page 22) is exceeded,
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) Style 2 will be supplied. (Function S only.)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 2. Metric dimensions (mm) are indicated in parentheses.
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 3. Cable range is defined as the accommodations range
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) for the wire bundle or cable. Dimensions shown are
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) not intended for inspection criteria.
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 4. Consult factory for shorter lengths on straight back-
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) shells.
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 5. When using Connector Designator B refer to pages
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) 18 and 19 for part number development.

TABLE IV: ELBOW DIMENSIONS
Elbow E F G H
Size Max Max Max Max
01 .567 (14.4) 1.848 (46.9) .636 (16.2) 1.858 (47.2) TABLE Il: STANDARD FINISHES
02 .567 (14.4) 1.848 (46.9) .636 (16.2) 1.858 (47.2) GLENAIR
03 .630 (16.0) 1.908 (48.5) .710 (18.0) 1.978 (50.2) SYMBOL FINISH
04 .692 (17.6) 1.968 (50.0) .731 (18.6) 1.998 (50.7) B Cadmium Plate, Olive Drab
M
10 .755 (19.2) 2.347 (59.6) .825 (21.0) 2.357 (59.9) NF Electroless Nickel
Cadmium Plate, Olive Drab
12 .848 (21.5) 2.457 (62.4) .988 (25.1) 2.447 (62.2) Over Electroless Nickel
16 1.036 (26.3) 2.647 (67.2) 1.087 (27.6) 2.617 (66.5) See Inside Back Cover
20 1.130 (28.7) 2.922 (74.2) 1.325 (33.7) 2.852 (72.4) for Additional Finish Options
24 1.255 (31.9) 2.972 (75.5) 1.337 (34.0) 3.022 (76.8)
28 1.317 (33.5) 3.072 (78.0) 1.827 (46.4) 3.272 (83.1)
32 1.348 (34.2) 3.162 (80.3) 2.027 (51.5) 3.272 (83.1)

TABLE X: CABLE ENTRY
Dash X Y Z Cable Range
No. Max Max Max Min Max
01 .850 (21.6) .781 (19.8) .593 (15.1) .062 (1.6) .125 (3.2)
02 .850 (21.6) .968 (24.6) .718 (18.2) .125 (3.2) .250 (6.4)
03 .850 (21.6) 1.046 (26.6) .843 (21.4) .250 (6.4) .375 (9.5)
04 .850 (21.6) 1.156 (29.4) .968 (24.6) .375 (9.5) .500 (12.7)
10 .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .875 (22.2) 1.375 (34.9)
28 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.125 (28.6) 1.625 (41.3)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 29 E-Mail: sales@glenair.com
