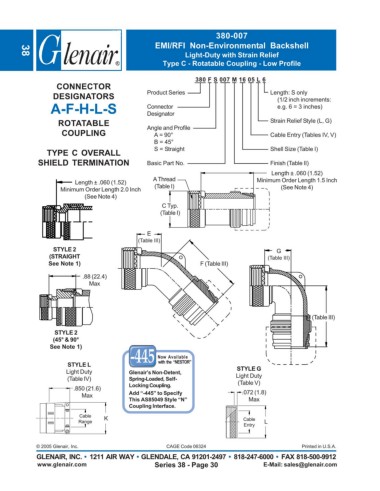

Page 166 - Circular Connector Backshells and Accessories

380-007
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief
38
Type C - Rotatable Coupling - Low Profile

380 F S 007 M 16 05 L 6
CONNECTOR
DESIGNATORS Product Series Length: S only
(1/2 inch increments:
A-F-H-L-S Connector e.g. 6 = 3 inches)
Designator
ROTATABLE Angle and Profile Strain Relief Style (L, G)
COUPLING A = 90° Cable Entry (Tables IV, V)
B = 45°
TYPE C OVERALL S = Straight Shell Size (Table I)
SHIELD TERMINATION Basic Part No. Finish (Table II)
Length ± .060 (1.52)
A Thread Minimum Order Length 1.5 Inch
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch (Table I) (See Note 4)
(See Note 4)
C Typ.
(Table I)

E
(Table III)
STYLE 2 G
(STRAIGHT (Table III)
See Note 1) F (Table III)

.88 (22.4)
Max

H (Table III)

STYLE 2
(45° & 90°
See Note 1)

Now Available
STYLE L with the “NESTOR”
Light Duty Glenair’s Non-Detent, STYLE G
(Table IV) Spring-Loaded, Self- Light Duty
Locking Coupling. (Table V)
.850 (21.6)
Max Add “-445” to Specify .072 (1.8)
This AS85049 Style “N” Max
Coupling Interface.
Cable K
Range Cable L
Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 30 E-Mail: sales@glenair.com
