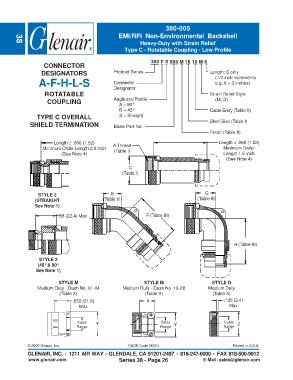

Page 162 - Circular Connector Backshells and Accessories

380-005
EMI/RFI Non-Environmental Backshell
Heavy-Duty with Strain Relief
38
Type C - Rotatable Coupling - Low Profile

380 F S 005 M 16 10 M 6
CONNECTOR
DESIGNATORS Product Series Length: S only
(1/2 inch increments:
A-F-H-L-S Connector e.g. 6 = 3 inches)
Designator
ROTATABLE Strain Relief Style
COUPLING Angle and Profile (M, D)
A = 90°
B = 45° Cable Entry (Table X)
TYPE C OVERALL S = Straight
SHIELD TERMINATION Basic Part No. Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52) Length ± .060 (1.52)
Minimum Order Length 2.0 Inch A Thread Minimum Order
(Table I)
(See Note 4) Length 1.5 Inch
(See Note 4)
C
(Table I)

STYLE 2 E G
(STRAIGHT (Table III) (Table III)
See Note 1)

.88 (22.4) Max F (Table III)

H (Table III)

STYLE 2
(45° & 90°
See Note 1)

STYLE M STYLE M STYLE D
Medium Duty - Dash No. 01-04 Medium Duty - Dash No. 10-28 Medium Duty
(Table X) (Table X) (Table X)
.850 (21.6) X .135 (3.4)
Max Max

Cable Y Cable Y Cable Z
Range Range Range

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 26 E-Mail: sales@glenair.com
