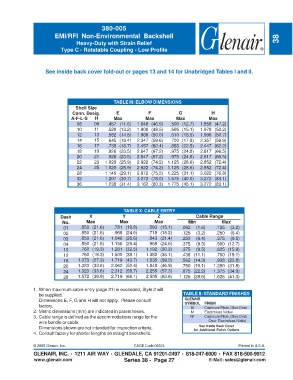

Page 163 - Circular Connector Backshells and Accessories

380-005
EMI/RFI Non-Environmental Backshell 38
Heavy-Duty with Strain Relief
Type C - Rotatable Coupling - Low Profile

See inside back cover fold-out or pages 13 and 14 for Unabridged Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .457 (11.6) 1.848 (46.9) .500 (12.7) 1.858 (47.2)
10 11 .520 (13.2) 1.908 (48.5) .595 (15.1) 1.978 (50.2)
12 13 .582 (14.8) 1.968 (50.0) .610 (15.5) 1.998 (50.7)
14 15 .645 (16.4) 2.347 (59.6) .700 (17.8) 2.357 (59.9)
16 17 .738 (18.7) 2.457 (62.4) .885 (22.5) 2.447 (62.2)
18 19 .926 (23.5) 2.647 (67.2) .975 (24.8) 2.617 (66.5)
20 21 .926 (23.5) 2.647 (67.2) .975 (24.8) 2.617 (66.5)
22 23 1.020 (25.9) 2.922 (74.2) 1.125 (28.6) 2.852 (72.4)
24 25 1.020 (25.9) 2.922 (74.2) 1.125 (28.6) 2.852 (72.4)
28 1.145 (29.1) 2.972 (75.5) 1.225 (31.1) 3.022 (76.8)
32 1.207 (30.7) 3.072 (78.0) 1.575 (40.0) 3.272 (83.1)
36 1.238 (31.4) 3.162 (80.3) 1.775 (45.1) 3.272 (83.1)

TABLE X: CABLE ENTRY
Dash X Y Z Cable Range
No. Max Max Max Min Max
01 .850 (21.6) .781 (19.8) .593 (15.1) .062 (1.6) .125 (3.2)
02 .850 (21.6) .968 (24.6) .718 (18.2) .125 (3.2) .250 (6.4)
03 .850 (21.6) 1.046 (26.6) .843 (21.4) .250 (6.4) .375 (9.5)
04 .850 (21.6) 1.156 (29.4) .968 (24.6) .375 (9.5) .500 (12.7)
10 .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .875 (22.2) 1.375 (34.9)
28 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.125 (28.6) 1.625 (41.3)

1. When maximum cable entry (page 21) is exceeded, Style 2 will
be supplied. TABLE Il: STANDARD FINISHES
Dimensions E, F, G and H will not apply. Please consult GLENAIR
factory. SYMBOL FINISH
B
Cadmium Plate, Olive Drab
2. Metric dimensions (mm) are indicated in parentheses. M Electroless Nickel
3. Cable range is defined as the accommodations range for the NF Cadmium Plate, Olive Drab
wire bundle or cable. Over Electroless Nickel
See Inside Back Cover
Dimensions shown are not intended for inspection criteria. for Additional Finish Options
4. Consult factory for shorter lengths on straight backshells.
