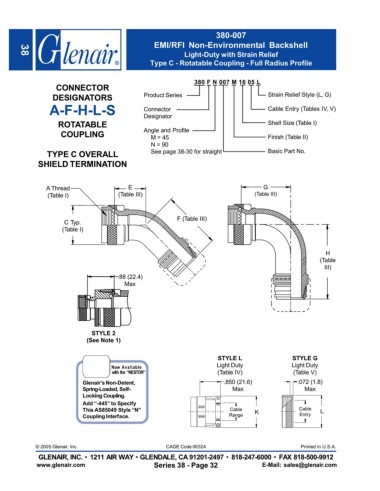

Page 168 - Circular Connector Backshells and Accessories

380-007
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief
38
Type C - Rotatable Coupling - Full Radius Profile

380 F N 007 M 16 05 L
CONNECTOR
DESIGNATORS Product Series Strain Relief Style (L, G)
A-F-H-L-S Connector Cable Entry (Tables IV, V)
Designator
ROTATABLE Shell Size (Table I)
COUPLING Angle and Profile
M = 45° Finish (Table II)
N = 90°
TYPE C OVERALL See page 38-30 for straight Basic Part No.
SHIELD TERMINATION

A Thread E G
(Table I) (Table III) (Table III)

F (Table III)
C Typ.
(Table I)

H
(Table
III)
.88 (22.4)
Max

STYLE 2
(See Note 1)

STYLE L STYLE G
Now Available Light Duty Light Duty
with the ´NESTORµ (Table IV) (Table V)
Glenair’s Non-Detent, .850 (21.6) .072 (1.8)
Spring-Loaded, Self- Max Max
Locking Coupling.
Add “-445” to Specify
This AS85049 Style “N” Cable K Cable L
Coupling Interface. Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 32 E-Mail: sales@glenair.com
