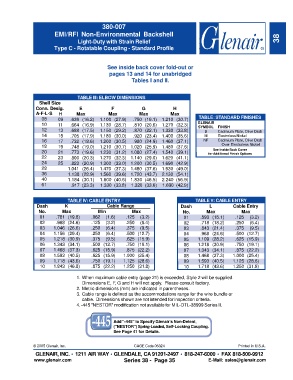

380-007
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief 38
Type C - Rotatable Coupling - Standard Profile

See inside back cover fold-out or
pages 13 and 14 for unabridged
Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .639 (16.2) 1.100 (27.9) .750 (19.1) 1.210 (30.7) TABLE: STANDARD FINISHES
10 11 .664 (16.9) 1.130 (28.7) .810 (20.6) 1.270 (32.3) GLENAIR FINISH
SYMBOL
12 13 .688 (17.5) 1.150 (29.2) .870 (22.1) 1.330 (33.8) B Cadmium Plate, Olive Drab
14 15 .705 (17.9) 1.180 (30.0) .920 (23.4) 1.400 (35.6) M Electroless Nickel
16 17 .732 (18.6) 1.200 (30.5) .980 (24.9) 1.460 (37.1) NF Cadmium Plate, Olive Drab
Over Electroless Nickel
18 19 .748 (19.0) 1.210 (30.7) 1.020 (25.9) 1.480 (37.6) See Inside Back Cover
20 21 .773 (19.6) 1.230 (31.2) 1.080 (27.4) 1.540 (39.1) for Additional Finish Options
22 23 .800 (20.3) 1.270 (32.3) 1.140 (29.0) 1.620 (41.1)
24 25 .823 (20.9) 1.300 (33.0) 1.200 (30.5) 1.690 (42.9)
28 1.041 (26.4) 1.470 (37.3) 1.480 (37.6) 1.930 (49.0)
36 1.138 (28.9) 1.560 (39.6) 1.720 (43.7) 2.130 (54.1)
40 1.184 (30.1) 1.600 (40.6) 1.830 (46.5) 2.240 (56.9)
61 .917 (23.3) 1.330 (33.8) 1.320 (33.6) 1.690 (42.9)

TABLE IV: CABLE ENTRY TABLE V: CABLE ENTRY
Dash K Cable Range Dash L Cable Entry
No. Max Min Max No. Max Max
01 .781 (19.8) .062 (1.6) .125 (3.2) 01 .593 (15.1) .125 (3.2)
02 .968 (24.6) .125 (3.2) .250 (6.4) 02 .718 (18.2) .250 (6.4)
03 1.046 (26.6) .250 (6.4) .375 (9.5) 03 .843 (21.4) .375 (9.5)
04 1.156 (29.4) .250 (6.4) .500 (12.7) 04 .968 (24.6) .500 (12.7)
05 1.218 (30.9) .375 (9.5) .625 (15.9) 05 1.109 (28.2) .625 (15.9)
06 1.343 (34.1) .500 (12.7) .750 (19.1) 06 1.218 (30.9) .750 (19.1)
07 1.468 (37.3) .625 (15.9) .875 (22.2) 07 1.343 (34.1) .875 (22.2)
08 1.593 (40.5) .625 (15.9) 1.000 (25.4) 08 1.468 (37.3) 1.000 (25.4)
09 1.718 (43.6) .750 (19.1) 1.125 (28.6) 09 1.593 (40.5) 1.125 (28.6)
10 1.843 (46.8) .875 (22.2) 1.250 (31.8) 10 1.718 (43.6) 1.250 (31.8)

1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. -445 "NESTOR" modification not available for MIL-DTL-38999 Series II.

Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 35 E-Mail: sales@glenair.com
