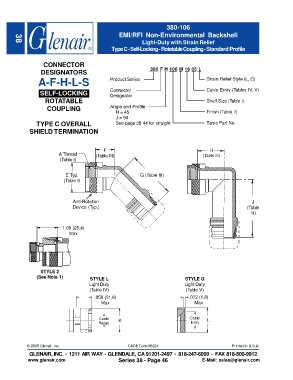

Page 182 - Circular Connector Backshells and Accessories

380-106
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief
38
Type C -Self-Locking- Rotatable Coupling -Standard Profile

CONNECTOR
DESIGNATORS 380 F H 106 M 16 05 L
A-F-H-L-S Product Series Strain Relief Style (L, G)

SELF-LOCKING Connector Cable Entry (Tables IV, V)
Designator
ROTATABLE Shell Size (Table I)
COUPLING Angle and Profile
H = 45° Finish (Table II)
J = 90°
TYPE C OVERALL See page 38-44 for straight Basic Part No.
SHIELD TERMINATION

F H
A Thread
(Table III) (Table III)
(Table I)

E Typ. G (Table III)
(Table I)

Anti-Rotation J
Device (Typ.) (Table
III)

1.00 (25.4)
Max

STYLE 2
(See Note 1) STYLE L STYLE G
Light Duty Light Duty
(Table IV) (Table V)
.850 (21.6) .072 (1.8)
Max Max

Cable K Cable L
Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 46 E-Mail: sales@glenair.com
