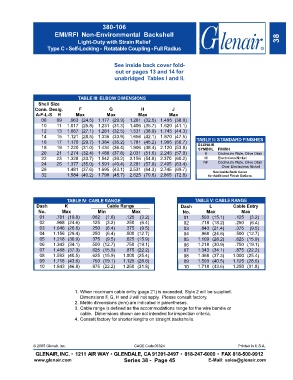

Page 181 - Circular Connector Backshells and Accessories

380-106
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief 38
Type C - Self-Locking - Rotatable Coupling - Full Radius

See inside back cover fold-
out or pages 13 and 14 for
unabridged Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. F G H J
A-F-L-S H Max Max Max Max
08 09 .963 (24.5) 1.177 (29.9) 1.281 (32.5) 1.495 (38.0)
10 11 1.017 (25.8) 1.231 (31.3) 1.406 (35.7) 1.620 (41.1)
12 13 1.067 (27.1) 1.281 (32.5) 1.531 (38.9) 1.745 (44.3)
14 15 1.121 (28.5) 1.335 (33.9) 1.656 (42.1) 1.870 (47.5) TABLE II: STANDARD FINISHES
16 17 1.170 (29.7) 1.384 (35.2) 1.781 (45.2) 1.995 (50.7)
18 19 1.220 (31.0) 1.434 (36.4) 1.906 (48.4) 2.120 (53.8) GLENAIR FINISH
SYMBOL
20 21 1.274 (32.4) 1.488 (37.8) 2.031 (51.6) 2.245 (57.0) B Cadmium Plate, Olive Drab
22 23 1.328 (33.7) 1.542 (39.2) 2.156 (54.8) 2.370 (60.2) M Electroless Nickel
24 25 1.377 (35.0) 1.591 (40.4) 2.281 (57.9) 2.495 (63.4) NF Cadmium Plate, Olive Drab
28 1.481 (37.6) 1.695 (43.1) 2.531 (64.3) 2.745 (69.7) Over Electroless Nickel
See Inside Back Cover
32 1.584 (40.2) 1.798 (45.7) 2.625 (70.6) 2.865 (72.8) for Additional Finish Options

TABLE IV: CABLE RANGE TABLE V: CABLE RANGE
Dash K Cable Range Dash L Cable Entry
No. Max Min Max No. Max Max
01 .781 (19.8) .062 (1.6) .125 (3.2) 01 .593 (15.1) .125 (3.2)
02 .968 (24.6) .125 (3.2) .250 (6.4) 02 .718 (18.2) .250 (6.4)
03 1.046 (26.6) .250 (6.4) .375 (9.5) 03 .843 (21.4) .375 (9.5)
04 1.156 (29.4) .250 (6.4) .500 (12.7) 04 .968 (24.6) .500 (12.7)
05 1.218 (30.9) .375 (9.5) .625 (15.9) 05 1.109 (28.2) .625 (15.9)
06 1.343 (34.1) .500 (12.7) .750 (19.1) 06 1.218 (30.9) .750 (19.1)
07 1.468 (37.3) .625 (15.9) .875 (22.2) 07 1.343 (34.1) .875 (22.2)
08 1.593 (40.5) .625 (15.9) 1.000 (25.4) 08 1.468 (37.3) 1.000 (25.4)
09 1.718 (43.6) .750 (19.1) 1.125 (28.6) 09 1.593 (40.5) 1.125 (28.6)
10 1.843 (46.8) .875 (22.2) 1.250 (31.8) 10 1.718 (43.6) 1.250 (31.8)

1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions F, G, H and J will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.
