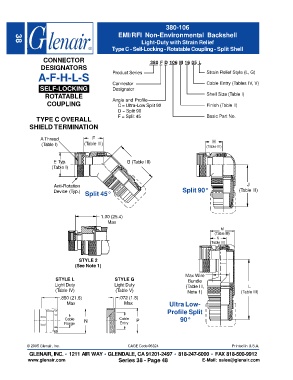

Page 184 - Circular Connector Backshells and Accessories

380-106
EMI/RFI Non-Environmental Backshell
Light-Duty with Strain Relief
38
Type C - Self-Locking - Rotatable Coupling - Split Shell

CONNECTOR 380 F D 106 M 16 05 L
DESIGNATORS
A-F-H-L-S Product Series Strain Relief Style (L, G)
Connector Cable Entry (Tables IV, V)
SELF-LOCKING Designator
ROTATABLE Shell Size (Table I)
COUPLING Angle and Profile Finish (Table II)
C = Ultra-Low Split 90°
D = Split 90°
TYPE C OVERALL F = Split 45° Basic Part No.
SHIELD TERMINATION

A Thread F H
(Table I) (Table III)
(Table III)

E Typ. G (Table III)
(Table I)

Anti-Rotation J
Device (Typ.) Split 45° Split 90° (Table III)

1.00 (25.4)
Max
M
(Table III)
K
(Table III)

STYLE 2
(See Note 1)

Max Wire
STYLE L STYLE G
Bundle
Light Duty Light Duty (Table III, L
(Table IV) (Table V)
Note 1) (Table III)
.850 (21.6) .072 (1.8)
Max Max Ultra Low-
Profile Split

Cable N Cable P 90°
Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 48 E-Mail: sales@glenair.com
