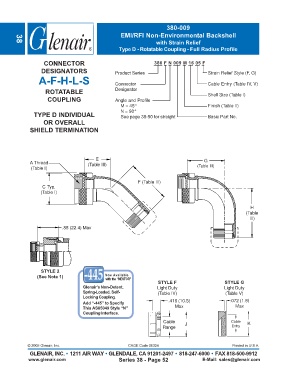

Page 188 - Circular Connector Backshells and Accessories

380-009
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Rotatable Coupling - Full Radius Profile

CONNECTOR 380 F N 009 M 16 05 F
DESIGNATORS Product Series Strain Relief Style (F, G)
A-F-H-L-S Connector Cable Entry (Table IV, V)

ROTATABLE Designator Shell Size (Table I)
COUPLING Angle and Profile
M = 45° Finish (Table II)
N = 90°
TYPE D INDIVIDUAL See page 38-50 for straight Basic Part No.
OR OVERALL
SHIELD TERMINATION

E G
A Thread
(Table III) (Table III)
(Table I)

F (Table III)
C Typ.
(Table I)

H
(Table
III)

.88 (22.4) Max

STYLE 2
(See Note 1) Now Available
with the “NESTOR”
STYLE F STYLE G
Glenair’s Non-Detent, Light Duty Light Duty
Spring-Loaded, Self- (Table IV) (Table V)
Locking Coupling.
.416 (10.5) .072 (1.8)
Add “-445” to Specify
This AS85049 Style “N” Max Max
Coupling Interface.
Cable J Cable K
Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 52 E-Mail: sales@glenair.com
