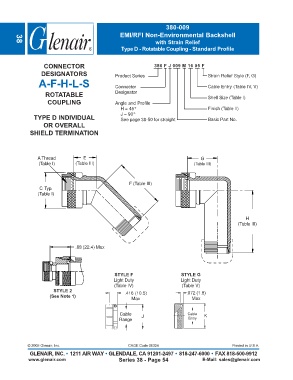

380-009
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Rotatable Coupling - Standard Profile

CONNECTOR 380 F J 009 M 16 05 F
DESIGNATORS Product Series Strain Relief Style (F, G)
A-F-H-L-S Connector Cable Entry (Table IV, V)

ROTATABLE Designator Shell Size (Table I)
COUPLING Angle and Profile
H = 45° Finish (Table II)
J = 90°
TYPE D INDIVIDUAL See page 38-50 for straight Basic Part No.
OR OVERALL
SHIELD TERMINATION

A Thread E G
(Table I) (Table III) (Table III)

F (Table III)
C Typ.
(Table I)

H
(Table III)

.88 (22.4) Max

STYLE F STYLE G
Light Duty Light Duty
(Table IV) (Table V)
STYLE 2
(See Note 1) .416 (10.5) .072 (1.8)
Max Max

Cable J Cable K
Range Entry
