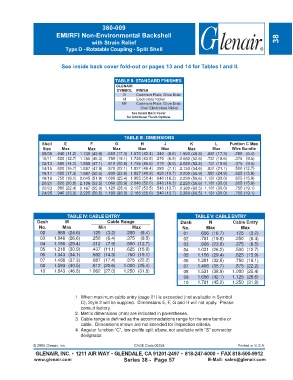

Page 193 - Circular Connector Backshells and Accessories
P. 193

380-009
                         EMI/RFI Non-Environmental Backshell
                                       with Strain Relief                                                            38
                            Type D - Rotatable Coupling - Split Shell


                           See inside back cover fold-out or pages 13 and 14 for Tables I and II.


                                                 TABLE II: STANDARD FINISHES
                                                  GLENAIR
                                                  SYMBOL  FINISH
                                                     B    Cadmium Plate, Olive Drab
                                                    M     Electroless Nickel
                                                    NF    Cadmium Plate, Olive Drab
                                                              Over Electroless Nickel
                                                        See Inside Back Cover
                                                      for Additional Finish Options



                                                     TABLE III: DIMENSIONS
                   Shell    E          F         G          H         J          K         L     Funtion C Max
                   Size    Max        Max       Max        Max      Max        Max        Max     Wire Bundle
                  08/09  .440 (11.2)  1.730 (43.9)  .680 (17.3)  1.670 (42.4) .340 (8.6)  1.920 (48.8)  .681 (17.3)  .250 (6.4)
                   10/11  .500 (12.7)  1.785 (45.3)  .750 (19.1)  1.725 (43.8) .270 (6.9)  2.080 (52.8)  .731 (18.6)  .375 (9.5)
                  12/13  .560 (14.2)  1.855 (47.1)  .810 (20.6)  1.795 (45.6) .270 (6.9)  2.080 (52.8)  .731 (18.6)  .375 (9.5)
                  14/15  .620 (15.7)  1.887 (47.9)  .870 (22.1)  1.827 (46.4) .280 (7.1)  2.150 (54.6)  .831 (21.1)  .500 (12.7)
                  16/17  .680 (17.3)  1.987 (50.5)  .930 (23.6)  1.927 (48.9) .420 (10.7)  2.200 (55.9)  .981 (24.9)  .625 (15.9)
                  18/19  .750 (19.1)  2.045 (51.9) 1.000 (25.4)  1.985 (50.4) .640 (16.3)  2.230 (56.6) 1.181 (30.0)  .625 (15.9)
                  20/21  .820 (20.8)  2.106 (53.5) 1.060 (26.9)  2.046 (52.0) .640 (16.3)  2.230 (56.6) 1.181 (30.0)  .625 (15.9)
                  22/23  .880 (22.4)  2.167 (55.0) 1.120 (28.4)  2.107 (53.5) .540 (13.7)  2.380 (60.5) 1.181 (30.0)  .750 (19.1)
                  24/25  .940 (23.9)  2.225 (56.5) 1.180 (30.0)  2.165 (55.0) .540 (13.7)  2.380 (60.5) 1.181 (30.0)  .750 (19.1)




                             TABLE IV: CABLE ENTRY                                 TABLE V: CABLE ENTRY
                 Dash       M                 Cable Range                   Dash        N         Cable Entry
                 No.       Max            Min           Max                  No.       Max            Max
                  02     .968 (24.6)   .125  (3.2)    .250  (6.4)             01     .656 (16.7)   .125  (3.2)
                  03    1.046 (26.6)   .250  (6.4)    .375  (9.5)             02     .781 (19.8)   .250  (6.4)
                  04    1.156 (29.4)   .312  (7.9)    .500 (12.7)             03     .906 (23.0)   .375  (9.5)
                  05    1.218 (30.9)   .437 (11.1)    .625 (15.9)             04    1.031 (26.2)   .500 (12.7)
                  06    1.343 (34.1)   .562 (14.3)    .750 (19.1)             05    1.156 (29.4)   .625 (15.9)
                  07    1.468 (37.3)   .687 (17.4)    .875 (22.2)             06    1.281 (32.5)   .750 (19.1)
                  08    1.593 (40.5)   .812 (20.6)   1.000 (25.4)             07    1.406 (35.7)   .875 (22.2)
                  10    1.843 (46.8)  1.062 (27.0)   1.250 (31.8)             08    1.531 (38.9)  1.000 (25.4)
                                                                              09    1.656 (42.1)  1.125 (28.6)
                                                                              10    1.781 (45.2)  1.250 (31.8)


                                 1. When maximum cable entry (page 21) is exceeded (not available in Symbol
                                   C), Style 2 will be supplied.  Dimensions E, F, G and H will not apply.  Please
                                   consult factory.
                                 2. Metric dimensions (mm) are indicated in parentheses.
                                 3. Cable range is defined as the accommodations range for the wire bundle or
                                   cable.  Dimensions shown are not intended for inspection criteria.
                                 4. Angular function "C", low-profile split elbow, not available with "S" connector
                                   designator.

               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 38 -  Page 57               E-Mail: sales@glenair.com
