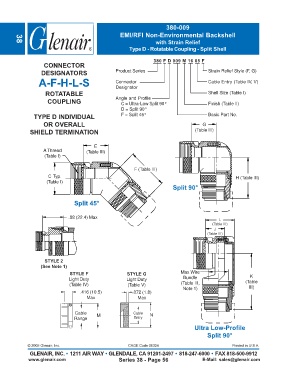

Page 192 - Circular Connector Backshells and Accessories

380-009
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Rotatable Coupling - Split Shell

380 F D 009 M 16 05 F
CONNECTOR
DESIGNATORS Product Series Strain Relief Style (F, G)
A-F-H-L-S Connector Cable Entry (Table IV, V)
Designator
ROTATABLE Shell Size (Table I)
COUPLING Angle and Profile Finish (Table II)
C = Ultra-Low Split 90°
D = Split 90°
TYPE D INDIVIDUAL F = Split 45° Basic Part No.
OR OVERALL G
SHIELD TERMINATION (Table III)

E
A Thread (Table III)
(Table I)

F (Table III)
C Typ. H (Table III)
(Table I)
Split 90°

Split 45°

.88 (22.4) Max
L
(Table III)
J
(Table III)

STYLE 2
(See Note 1)
STYLE F STYLE G Max Wire
K
Light Duty Light Duty Bundle (Table
(Table IV) (Table V) (Table III,
Note 1) III)
.416 (10.5) .072 (1.8)
Max Max

Cable M Cable N
Range Entry
Ultra Low-Profile
Split 90°

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
