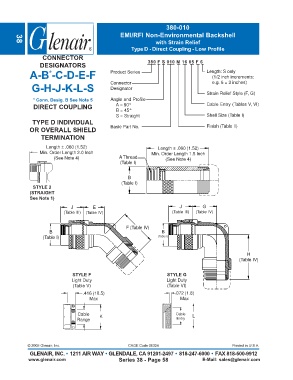

Page 194 - Circular Connector Backshells and Accessories

380-010
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Direct Coupling - Low Profile
CONNECTOR
DESIGNATORS 380 F S 010 M 16 05 F 6
A-B -C-D-E-F Product Series Length: S only
*
(1/2 inch increments:
G-H-J-K-L-S Connector e.g. 6 = 3 inches)
Designator
Strain Relief Style (F, G)
* Conn. Desig. B See Note 5 Angle and Profile
DIRECT COUPLING A = 90° Cable Entry (Tables V, VI)
B = 45°
S = Straight Shell Size (Table I)
TYPE D INDIVIDUAL
OR OVERALL SHIELD Basic Part No. Finish (Table II)
TERMINATION

Length ± .060 (1.52) Length ± .060 (1.52)
Min. Order Length 2.0 Inch Min. Order Length 1.5 Inch
(See Note 4) A Thread (See Note 4)
(Table I)

B
(Table I)
STYLE 2
(STRAIGHT
See Note 1)

J E J G
(Table III) (Table IV) (Table III) (Table IV)

F (Table IV)
B B
(Table I) (Table I)

H
(Table IV)

STYLE F STYLE G
Light Duty Light Duty
(Table V) (Table VI)
.416 (10.5) .072 (1.8)
Max Max

Cable Cable
K L
Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 58 E-Mail: sales@glenair.com
