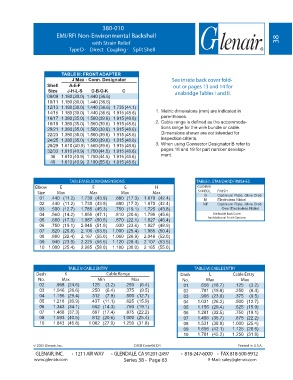

Page 199 - Circular Connector Backshells and Accessories

380-010
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type D - Direct Coupling - Split Shell

TABLE III: FRONT ADAPTER
J Max - Conn. Designator See inside back cover fold-
Shell A-E-F out or pages 13 and 14 for
Size J-H-L-S D-B-G-K C unabridge Tables I and II.
08/09 1.180 (30.0) 1.440 (36.6)
10/11 1.180 (30.0) 1.440 (36.6)
12/13 1.180 (30.0) 1.440 (36.6) 1.735(44.1)
14/15 1.180 (30.0) 1.440 (36.6) 1.915(48.6) 1. Metric dimensions (mm) are indicated in
16/17 1.380 (35.0) 1.560 (39.6) 1.915(48.6) parentheses.
18/19 1.380 (35.0) 1.560 (39.6) 1.915(48.6) 2. Cable range is defined as the accommoda-
20/21 1.380 (35.0) 1.560 (39.6) 1.915(48.6) tions range for the wire bundle or cable.
22/23 1.380 (35.0) 1.560 (39.6) 1.915(48.6) Dimensions shown are not intended for
24/25 1.380 (35.0) 1.560 (39.6) 1.915(48.6) inspection criteria.
28/29 1.610 (40.9) 1.560 (39.6) 1.915(48.6) 3. When using Connector Designator B refer to
32/33 1.610 (40.9) 1.750 (44.5) 1.915(48.6) pages 18 and 19 for part number develop-
36 1.610 (40.9) 1.750 (44.5) 1.915(48.6) ment.
40 1.610 (40.9) 2.190 (55.6) 1.915(48.6)

TABLE IV: ELBOW DIMENSIONS TABLE II: STANDARD FINISHES
Elbow E F G H GLENAIR
Size Max Max Max Max SYMBOL FINISH
01 .440 (11.2) 1.730 (43.9) .680 (17.3) 1.670 (42.4) B Cadmium Plate, Olive Drab
Electroless Nickel
M
02 .440 (11.2) 1.730 (43.9) .680 (17.3) 1.670 (42.4) NF Cadmium Plate, Olive Drab
03 .500 (12.7) 1.785 (45.3) .750 (19.1) 1.725 (43.8) Over Electroless Nickel
04 .560 (14.2) 1.855 (47.1) .810 (20.6) 1.795 (45.6) See Inside Back Cover
05 .680 (17.3) 1.987 (50.5) .870 (22.1) 1.827 (46.4) for Additional Finish Options
06 .750 (19.1) 2.045 (51.9) .930 (23.6) 1.927 (48.9)
07 .820 (20.8) 2.106 (53.5) 1.000 (25.4) 1.985 (50.4)
08 .880 (22.4) 2.167 (55.0) 1.060 (26.9) 2.046 (52.0)
09 .940 (23.9) 2.225 (56.5) 1.120 (28.4) 2.107 (53.5)
10 1.000 (25.4) 2.285 (58.0) 1.180 (30.0) 2.165 (55.0)

TABLE V: CABLE ENTRY TABLE VI: CABLE ENTRY
Dash K Cable Range Dash L Cable Entry
No. Max Min Max No. Max Max
02 .968 (24.6) .125 (3.2) .250 (6.4) 01 .656 (16.7) .125 (3.2)
03 1.046 (26.6) .250 (6.4) .375 (9.5) 02 .781 (19.8) .250 (6.4)
04 1.156 (29.4) .312 (7.9) .500 (12.7) 03 .906 (23.0) .375 (9.5)
05 1.218 (30.9) .437 (11.1) .625 (15.9) 04 1.031 (26.2) .500 (12.7)
06 1.343 (34.1) .562 (14.3) .750 (19.1) 05 1.156 (29.4) .625 (15.9)
07 1.468 (37.3) .687 (17.4) .875 (22.2) 06 1.281 (32.5) .750 (19.1)
08 1.593 (40.5) .812 (20.6) 1.000 (25.4) 07 1.406 (35.7) .875 (22.2)
10 1.843 (46.8) 1.062 (27.0) 1.250 (31.8) 08 1.531 (38.9) 1.000 (25.4)
09 1.656 (42.1) 1.125 (28.6)
10 1.781 (45.2) 1.250 (31.8)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 63 E-Mail: sales@glenair.com
