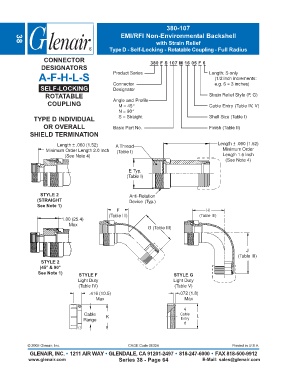

380-107
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Self-Locking - Rotatable Coupling - Full Radius

CONNECTOR 380 F S 107 M 16 05 F 6
DESIGNATORS
A-F-H-L-S Product Series Length: S only
(1/2 inch increments:
Connector e.g. 6 = 3 inches)
SELF-LOCKING Designator
ROTATABLE Strain Relief Style (F, G)
COUPLING Angle and Profile Cable Entry (Table IV, V)
M = 45°
N = 90°
TYPE D INDIVIDUAL S = Straight Shell Size (Table I)
OR OVERALL Basic Part No. Finish (Table II)
SHIELD TERMINATION

Length ± .060 (1.52) A Thread Length ± .060 (1.52)
Minimum Order Length 2.0 Inch (Table I) Minimum Order
(See Note 4) Length 1.5 Inch
(See Note 4)

E Typ.
(Table I)

STYLE 2 Anti-Rotation
(STRAIGHT Device (Typ.)
See Note 1)
F H
(Table III) (Table III)
1.00 (25.4)
Max
G (Table III)

J
(Table III)
STYLE 2
(45° & 90°
See Note 1) STYLE F STYLE G

Light Duty Light Duty
(Table IV) (Table V)
.416 (10.5) .072 (1.8)
Max Max

Cable Cable
K Entry L
Range
