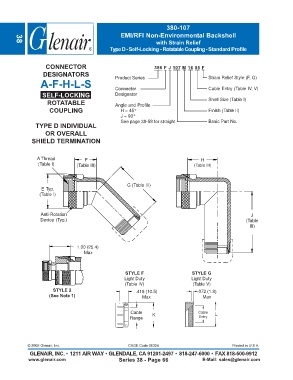

Page 202 - Circular Connector Backshells and Accessories

380-107
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Self-Locking - Rotatable Coupling - Standard Profile

CONNECTOR 380 F J 107 M 16 05 F
DESIGNATORS Product Series Strain Relief Style (F, G)
A-F-H-L-S

Connector Cable Entry (Table IV, V)
SELF-LOCKING Designator
ROTATABLE Angle and Profile Shell Size (Table I)
COUPLING H = 45° Finish (Table II)
J = 90°
See page 38-58 for straight Basic Part No.
TYPE D INDIVIDUAL
OR OVERALL
SHIELD TERMINATION

A Thread F H
(Table I) (Table III) (Table III)

G (Table III)
E Typ.
(Table I)

Anti-Rotation J
Device (Typ.) (Table
III)

1.00 (25.4)
Max

STYLE F STYLE G
Light Duty Light Duty
(Table IV) (Table V)
STYLE 2 .416 (10.5) .072 (1.8)
(See Note 1) Max Max

Cable Cable
K L
Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 66 E-Mail: sales@glenair.com
