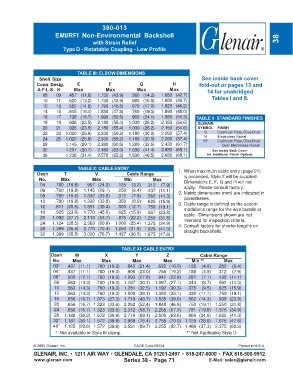

P. 207

380-013
                        EMI/RFI Non-Environmental Backshell
                                        with Strain Relief                                                           38
                           Type D - Rotatable Coupling - Low Profile




                                 TABLE III: ELBOW DIMENSIONS
                 Shell Size                                                          See inside back cover
                Conn. Desig.     E             F           G             H           fold-out or pages 13 and
                 A-F-L-S H      Max          Max          Max           Max             14 for unabridged
                   08    09  .457 (11.6)  1.730 (43.9)  .560 (14.2)  1.680 (42.7)         Tables I and II.
                   10    11  .520 (13.2)  1.730 (43.9)  .660 (16.8)  1.800 (45.7)
                   12    13  .582 (14.8)  1.790 (45.5)  .670 (17.0)  1.820 (46.2)
                   14    15  .645 (16.4)  1.880 (47.8)  .760 (19.3)  1.890 (48.0)
                   16    17  .738 (18.7)  1.990 (50.5)  .950 (24.1)  1.980 (50.3)  TABLE II: STANDARD FINISHES
                   18    19  .926 (23.5)  2.180 (55.4)  1.030 (26.2)  2.150 (54.6)  GLENAIR
                   20    21  .926 (23.5)  2.180 (55.4)  1.030 (26.2)  2.150 (54.6)  SYMBOL  FINISH
                   22    23  1.020 (25.9)  2.330 (59.2)  1.180 (30.0)  2.260 (57.4)   B     Cadmium Plate, Olive Drab
                                                                                      M     Electroless Nickel
                   24    25  1.020 (25.9)  2.330 (59.2)  1.180 (30.0)  2.260 (57.4)
                                                                                      NF    Cadmium Plate, Olive Drab
                   28       1.145 (29.1)  2.380 (60.5)  1.280 (32.5)  2.430 (61.7)              Over Electroless Nickel
                   32       1.207 (30.7)  2.480 (63.0)  1.630 (41.4)  2.680 (68.1)        See Inside Back Cover
                   36       1.238 (31.4)  2.570 (65.3)  1.830 (46.5)  2.680 (68.1)      for Additional Finish Options

                                  TABLE X: CABLE ENTRY
                 Dash       T            V            Cable Range           1. When maximum cable entry (page 21)
                 No.       Max          Max          Min         Max          is exceeded, Style 2 will be supplied.
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)    Dimensions E, F, G and H will not
                                                                              apply.  Please consult factory.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)  2. Metric dimensions (mm) are indicated in
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)   parentheses.
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)  3. Cable range is defined as the accom-
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)   modations range for the wire bundle or
                                                                              cable.  Dimensions shown are not
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)   intended for inspection criteria.
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)
                                                                            4. Consult factory for shorter lengths on
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)  straight backshells.
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)

                                                    TABLE XI: CABLE ENTRY
                      Dash      W            X            Y            Z             Cable Range
                       No.     Max          Max         Max          Max         Min **        Max
                       03*   .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                       04*   .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                       06*   .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                        08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                        10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                        12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                        16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                        20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
                        24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
                        28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
                       32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
                       40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
                        *  Not available in Style M clamp.                                                    ** Not Applicable Style D


               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 38 -  Page 71               E-Mail: sales@glenair.com
